M12 M Coding 2-Way T Splitter Cable PCM-S-0454

Product Information

Specification

About :

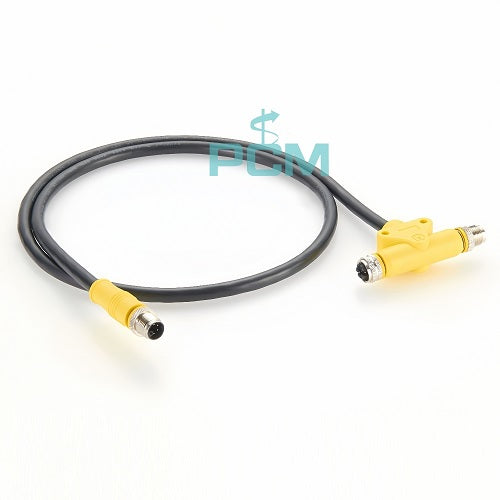

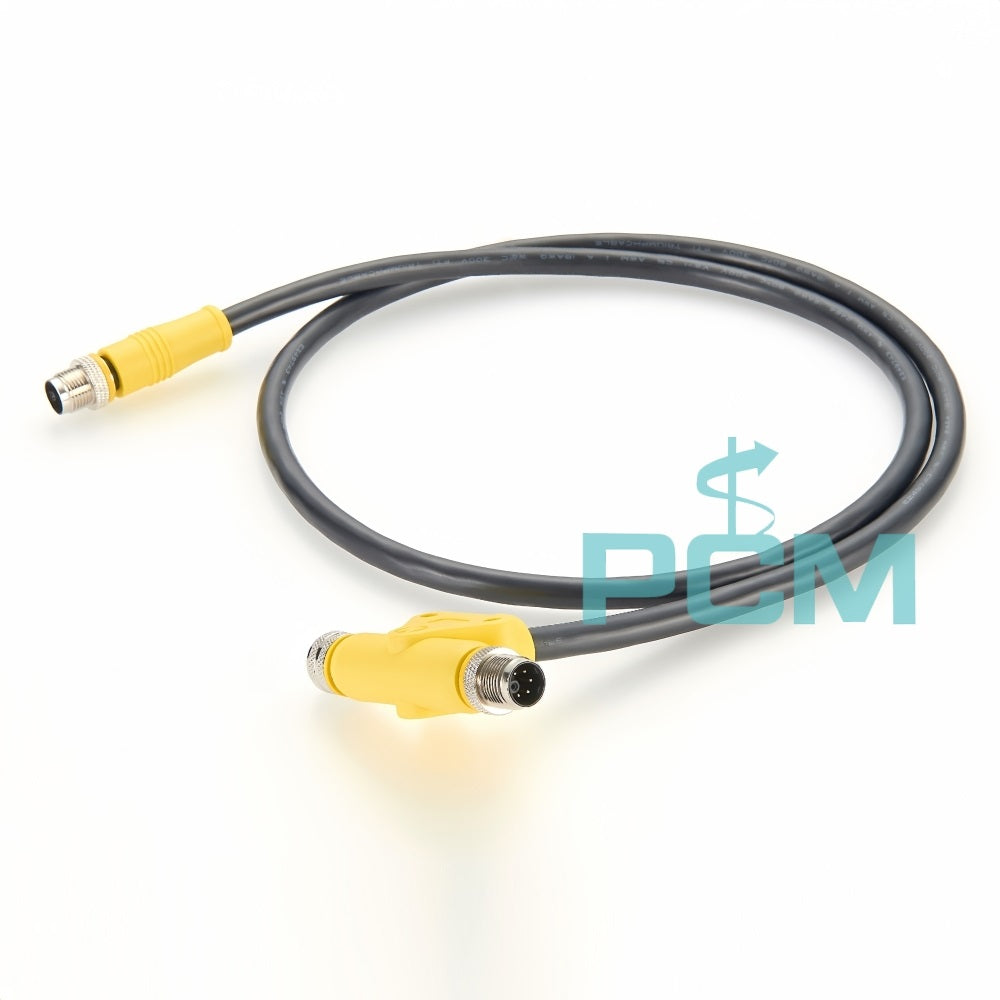

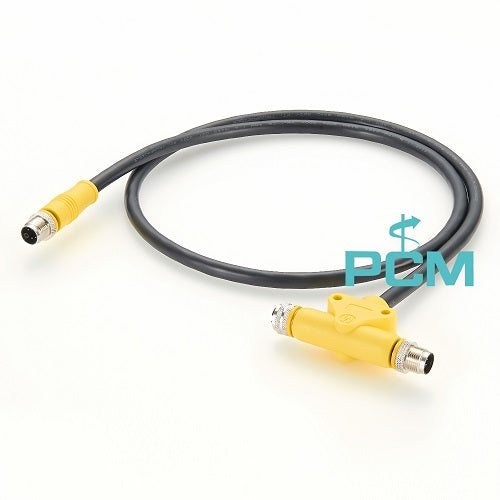

M12 M Coding power extension cable 2-Way T Splitter

M12 circular connector is 12 mm locking thread that are used in factory automation applications for sensors, actuators, industrial ethernet, and Fieldbus including K-Code, L-Code, A-code, B-code, D-code, X-code, S-code,T-code, Y-code

Also Known As :

Splitter Cord, Splitter Lead, Patch Cable, Distribution Cable, Adapter Cable, Dividing Cable

Specification :

M12 M code cable connector comply with IEC 61076-2-111 standard , have rated voltage 630V , rated currant 8A , the M code M12 connector could be used for 3 phase power connection , such as 3 phase motors or other 3 phase automation equipments . The M code M12  cable can be made single end male or female , other both end , each end can be male or female.

M12 connectors are round cable terminations with different coding styles that are used to connect signals in industrial, robot, and consumer products.

The M12 coding prevents incorrect mating and is used to indicate the type of signal that can be connected.

Some common M12 connector coding styles include :

• A-coded: Used for sensors, dc power, and 1 Gbit Ethernet

• B-coded: Used for Profibus

• C-coded: Used for ac power

• D-coded: Used for 100 Mbit Ethernet

• X-coded: Used for 10 Gbit Ethernet

• S-coded: Used for ac power

• T-coded: Used for dc power

• Y-coded: A hybrid mating face for M12 circular connectors with four data and four power contacts
