Loose Piece Disconnect Terminal StrongHold EDV14-250P-Q (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Disconnect Type | Piggy Back Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG) | 16 |
| Wire Strip Length (In.) | 0.25 |
| Wire Strip Length (mm) | 6.3 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Sub Brand | StrongHold |
| Product Type | Loose Piece Disconnect Terminal |
| For Use With | CT-100A, CT-260, CT-1550, CT-1551, CT-2300/ST, CT-2500/L (Not Sold Through Panduit) |
| Maximum Voltage (kV) | 0.3 |
| Part No | EDV14-250P-Q |

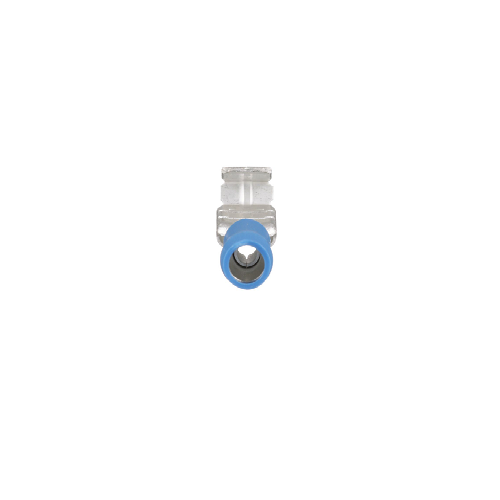

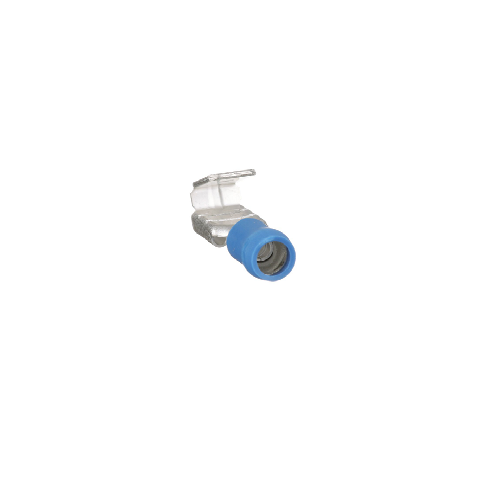

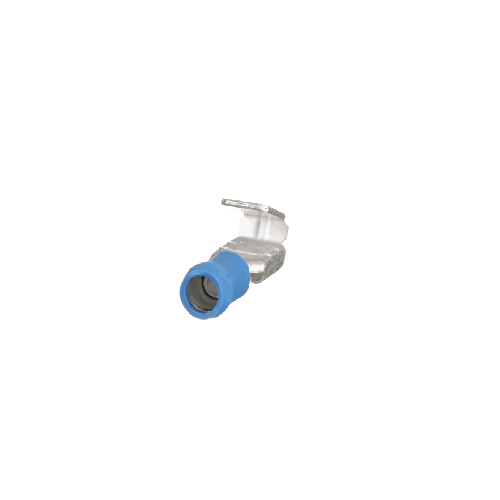

Loose Piece Disconnect Terminal StrongHold EDV14-250P-Q
DESCRIPTION :
StrongHold Piggyback Disconnect, vinyl barrel insulated, 16 – 14 AWG, .250 x .032 tab size.
Download PDF Spec Sheet
