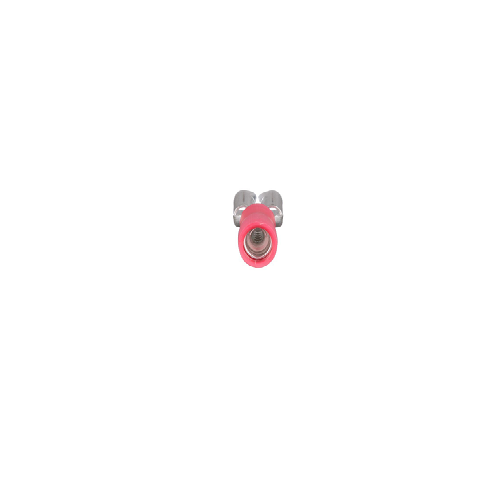

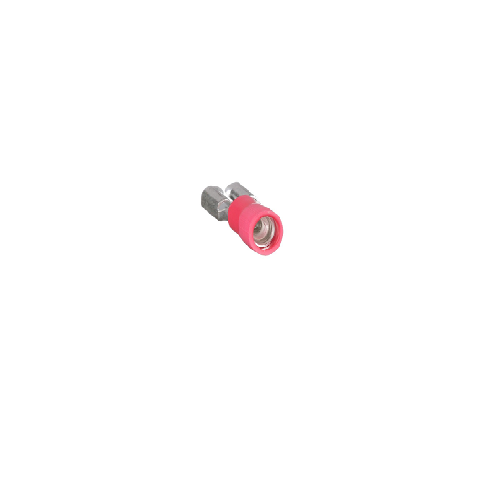

Loose Piece Disconnect Pan-Term DVF18-250-MY
DESCRIPTION :
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
FEATURES :
⦿ Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
⦿ Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
⦿ Internal barrel serrations assure good wire contact and maximum tensile strength
⦿ Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
⦿ UL Flammability UL 94V-0, maximum insulation temperature 194°F (90°C)
⦿ UL and CSA rated up to 300 V per UL 310
Download PDF Spec Sheet
