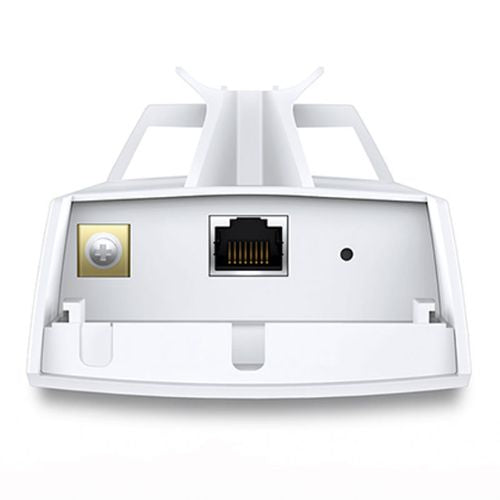

Long Range Outdoor CPE for wireless networking TPL-CPE510

Product Information

Specification

Description

Outdoor CPE is dedicated to reliable solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point and point-to-multipoint applications. Long-distance Wireless Connection Using two CPE to build a long-distance wireless connection.

Features

• Wireless N speed up to 300Mbps
• Selectable bandwidth of 5/10/20/40MHz
• Adjustable transmission power by 1dBm
• Broad operating frequency channels ensure less wireless interference
• Built-in 2×2 dual-polarized directional MIMO antenna
• Passive POE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment
• 1 10/100Mbps Ethernet port for passive POE (all CPE products) and 1 10/100Mbps Ethernet port for extended applications (CPE220/CPE520)
• TP-Link Pharos (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for Pt MP applications
• Centralized Management System – Pharos Control

Specification

Model: CPE510
Name: 5GHz 300Mbps 13dBi/16dBi Outdoor CPE
Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Dimensions (W x D x H): 85.8×43.9×29.7mm
Material: Outdoor ASA stabilized plastic
Weatherproof: IPX5 water and dust proof design
Operating Temperature: -40°C~70°C (-40°F~158°F)
Storage Humidity: 5%~95% non-condensing
