LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable

LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
Roll over image to Zoom
LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable
SKU: ZL-FP-PA-CCT-2X2-SM

Select a Variant

LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable

Availability: In stock

Price:
Regular price
$50.70
Sale price
$50.70
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Quantity must be 1 or more

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Product Information

Specification

Applications:

LED Back-Lit Flat Panel With Standard Output Wattage & Color Temperature Selectable is used for Offices, Schools, Libraries, Supermarkets, and Factories.

Also Known As:

LED Flat Panels, LED Back-Lit Flat Panels, Flat Panels, Color Selectable Flat Panels.

Description:

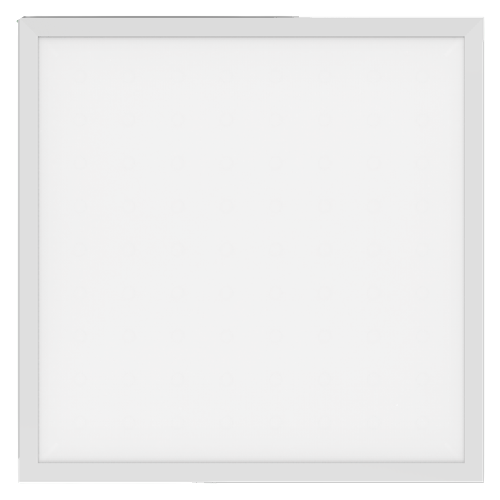

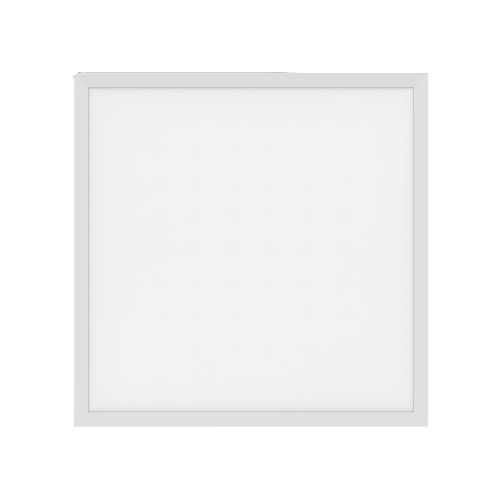

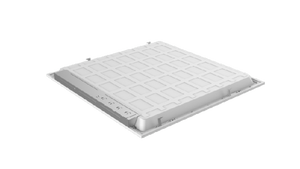

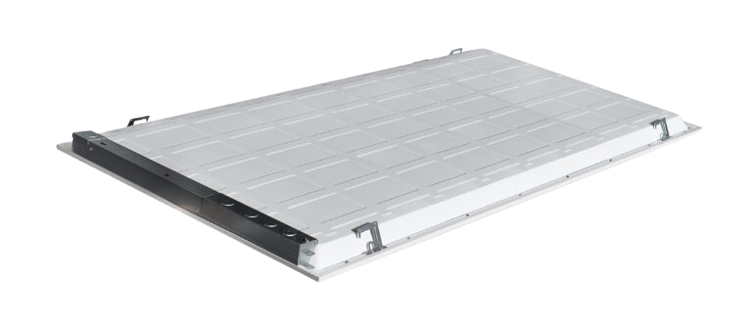

Our 2X2 LED Flat Panel is designed to create uniform light distribution without hot spots, flicker or glare. The Wattage and Color Temperature Selectable options allow you to adjust the light to fit your application. A white aluminum frame allows for the fixture to be fit in a drop ceiling (t-bar) grid, pendant hung with a cable kit, or can be surface mounted with the optional surface mount kit. Great for replacing old fluorescent fixtures or for new construction. Great for use in offices, schools, libraries, supermarkets, and factories.

Features:

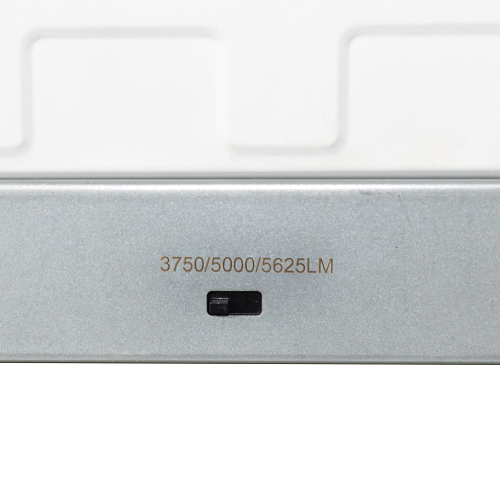

Wattages Standard Output:
2x2: 18W/24W/30W (selectable)
2x4: 30W/40W/48W (selectable)
High Output:
2x2: 20W/25W/30W (selectable)
2x4: 30W/40W/50W (selectable)
Color Temperatures 35K, 40K, 50K (selectable)
Lumens 120 lm/W
Voltage Input 120-277VAC
LED Lifespan 50,000 hours
Dimmable 0-10V
Certification UL, IP20
Size 2×2, 2×4


Specification:

Wattages Dimensions (WxHxD) Lumens  (+/-10%) LISTED Part.NO
18W/24W/30W selectable 23.74” x 23.74” x 1.37” 2250, 3000, 3750 UL ZL-FP-PA-CCT-2X2-SM (Standard Output)
30W/40W/48W selectable 23.74” x 47.71” x 1.37” 3750, 5000, 6000 UL ZL-FP-PA-CCT-2X4-SM (Standard Output)
20W/25W/30W selectable 23.74” x 23.74” x 1.37” 2250, 3125, 3750 UL ZL-FP-PA-CCT-2X2-TS-HO (High Output)
30W/40W/50W selectable 23.74” x 47.71” x 1.37” 3750, 5000, 6250 UL ZL-FP-PA-CCT-2X4-TS-HO (High Output)

    Download PDF Spec Sheet
