Lead Free PVC Wide Slot Wiring Duct 6 Ft G1X3LG6-A
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | G |
| Overall Height (In.) | 3.12 |
| Overall Length (ft.) | 6 |
| Overall Width (In.) | 1.25 |
| Slot Width (In.) | 0.31 |
| Body Thickness (In.) | 0.075 |
| Part Number | G1X3LG6-A |

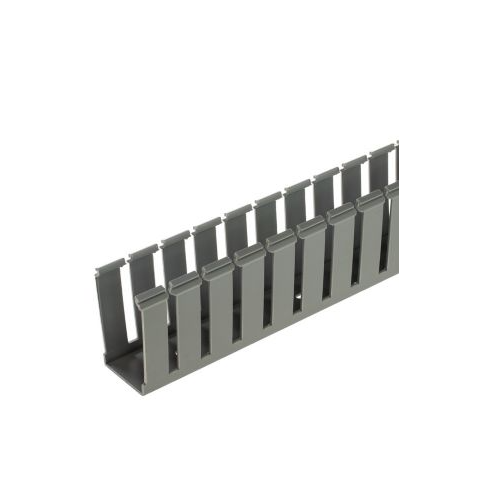

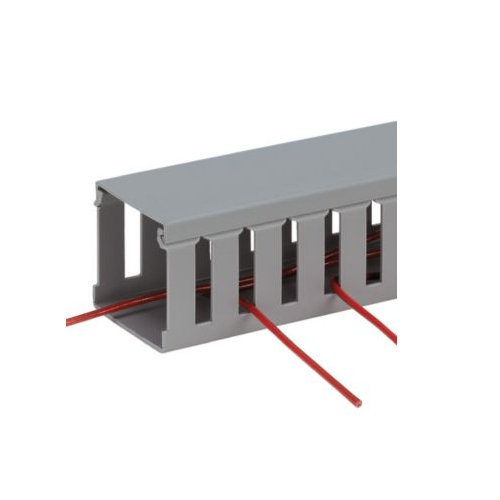

Lead Free PVC Wide Slot Wiring Duct G1X3LG6-A
Description:
The G1X3LG6-A Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Adhesive and mounting holes provided. Lead-free PVC. 3.12" x 1.25" (79.2 mm x 32.0 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray. 6 per package.
