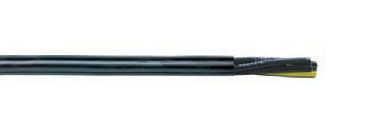

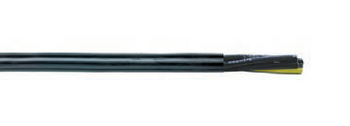

Lapp 221203 12 AWG 3 Conductors Flexible OLFLEX Tray II Cable

Lapp 221203 12 AWG 3 Conductors Flexible OLFLEX Tray II Cable

Applications:

Lapp Multi Conductors Flexible OLFLEX Tray II Cable is an industrial tray cable with superior oil resistance. It is designed for industrial plant applications and tray wiring. The cable is also suitable for submersible pump applications per NFPA. The cable can be installed without a conduit.

 Also Known As:

221203 12 AWG 3 Olflex cable, 221203 12 AWG 3 lapp olflex cable, 221203 12 AWG 3 olflex, lapp olflex, olflex wire, lapp cable, olflex cable, lapp wire, lapp olflex, control cable, power cable, oil-resistant cable, industrial cable, tray cable, cable tray, tc-er cable, exposed run cable, tray cable exposed run.

Standards:

• UL
• ULTC
• CSA
• CE
• RoHS
• NFPA Submersible Pump

Construction:

Conductor:

Stranded bare copper conductors with excellent conductivity.

Insulation:

The cable has Polyvinyl Chloride/nylon (PVC) insulation resistant to weather, abrasion, corrosion, flames, UV, impact, chemicals, acids, oils, sunlight, and industrial waste. The insulation has a semi-rigid structure.

Jacket:

PVC pressure-extruded jacket color-coded in black. The jacket has superior oil resistance and adds flexibility to the cable.

Shielding:

Tinned copper braid shielding with a 85% coverage.

Specification:
