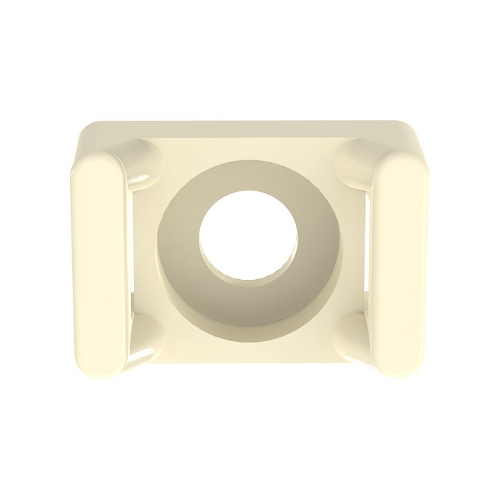

Ivory Nylon Cable Tie Mount TM1S6-M69
About:
TM1S6-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #6 (M3) screw. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are .513" long x .316" wide (13mm x 8mm), ivory in color.
Also Known As:
Cable Tie Mount, Nylon Material, Screw-On Mount Method, Ivory Color
Application:
Low Profile Flame Retardant Cable Tie Mount to Keep Bundle Close to Mounting Surface and for Indoor Use
Specification:
| Product Type | Cable Tie Mount |
| Color | Ivory |
| Flammability Rating | UL94V-0 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 100 |
| Maximum Operating Temperature (°F) | 212 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 0.513 |
| Overall Length (mm) | 13 |
| Overall Width (In.) | 0.316 |
| Overall Width (mm) | 8 |
| Overall Height (In.) | 0.23 |
| Overall Height (mm) | 5.8 |
| Resistance Properties | Flame-Retardant |
| For Use With | Miniature Cross-Section Ties |
| Part No. | TM1S6-M69 |
