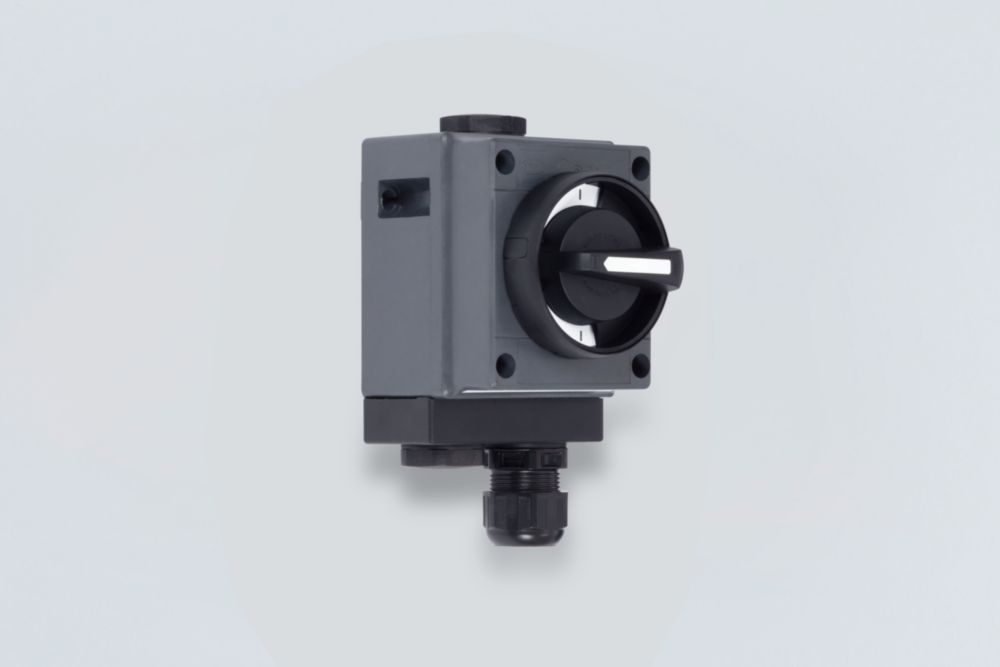

Installation Switch Series 8040/11-V30 - 8040/11-V30-033-B
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Installation Switch |
| Rated operational voltage AC | 690 V |
| Rated operational voltage DC | 220 V |
| Rated operational current | 16 A (T6) |
| No. of poles | 2 |
| Enclosure material | Polyester resin, Glass fibre reinforced |
| Sealing material | NBR |
| Contact material | silver-nickel |
| Min. connection terminals | 1.50 mm² |
| Max. solid connection terminals | 4 mm² |

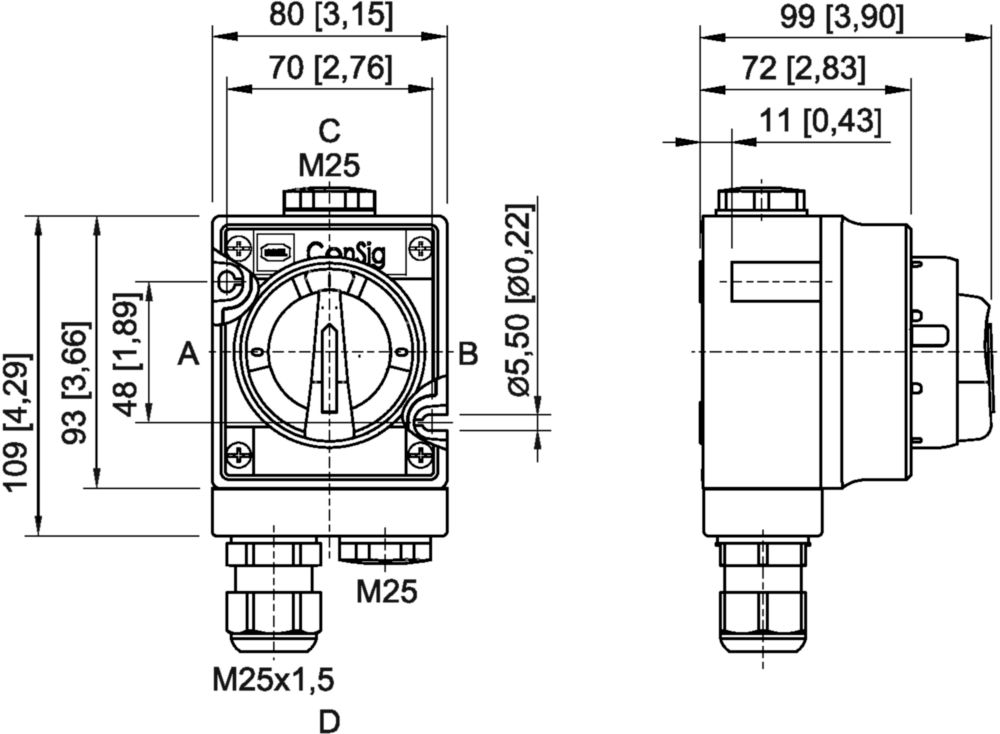

| Dimensions | H 3.6600 in x W 3.150 in x D 2.760 in |
| Part Number | 8040/11-V30-033-B |
Description :-:
The installation switches series 8040/11-V30 are used for lighting installations. Due to the 90° switching, the switching position is clearly indicated. This is an advantage if the lighting installation and the switch are located in different rooms. The fluorescent rotary actuator allows orientation in case of a lighting failure.
Key Features :-:
-

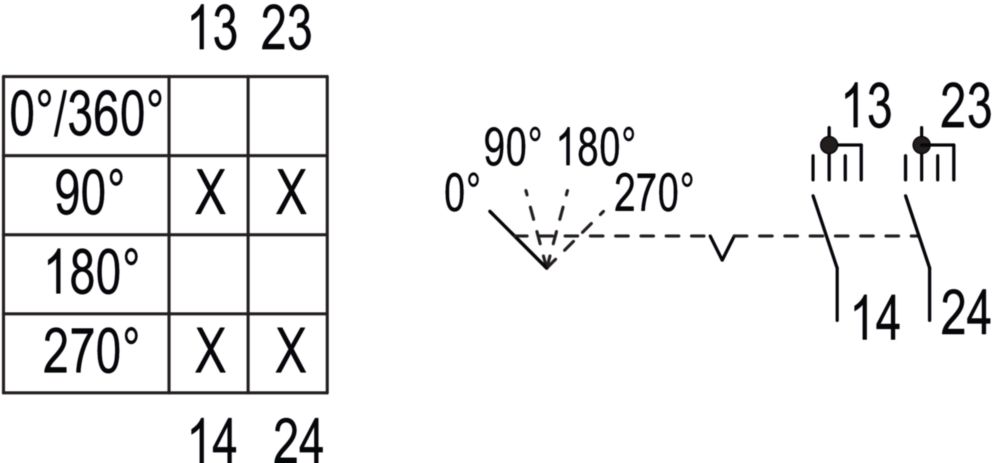

☸ Available as 2 pole OFF switch or changeover switch
☸ Enclosure made of optical fibre reinforced polyester resin
☸ Degree of protection IP66 according to IEC/EN 60529
☸ Clear position indicator 0/1 or ON/OFF
