IN-LINE SPLICE (HVS 1/C) FOR 1/C SHIELDED CABLE (5 - 35 kV) - HVS-821S
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Component Design | Heat Shrink |
| Joints & Splice Product Type | Medium Voltage Inline Joint |
| Joints & Splice Voltage Class (kV) | ≤ 8 |
| Cable Shield Style | Tape |
| Conductor Size (AWG/kcmil) | #6 - #2 |
| Insulation Diameter (min. - max.) | 0.35 - 0.65 (9 - 17) |
| Jacket O.D. (max.) | 0.80 (20) |
| Maximum Connector Dimensions | 0.50 (13) OD |
| Kit Installed Length | 24 (610) |
| Required Installation Space | 44 (1118) |
| Part Number | HVS-821S |

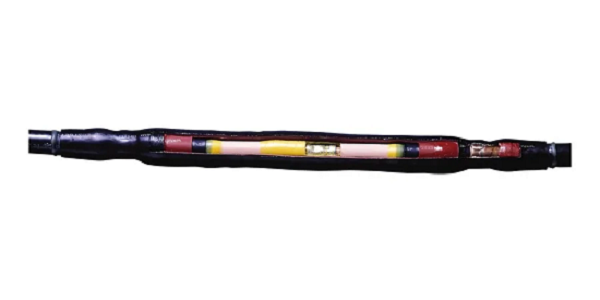

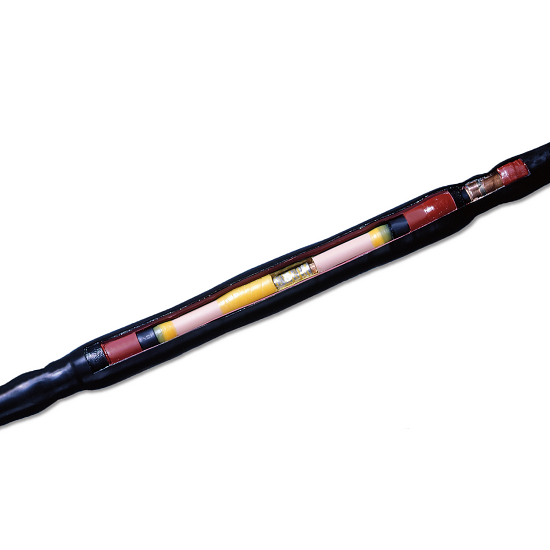

IN-LINE SPLICE (HVS 1/C) FOR 1/C SHIELDED CABLE (5 - 35 kV) - HVS-821S
Description:
TE Connectivity’s (TE) Raychem heat-shrinkable shielded power cable splices are pre-engineered to offer a compact, low-profile installation with a minimum diameter buildup.
Key Features:
- • Kits contain a solderless grounding kit, consisting of a ground clamp, a ground braid, and shielding mesh
- • Heat-shrink feature allows the kits to accommodate out-of-round, out-of-spec cable.
