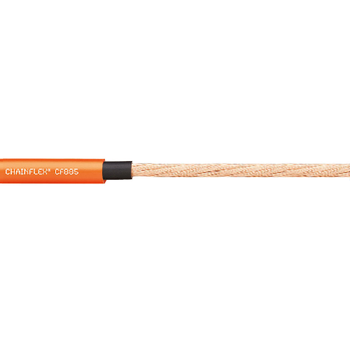

Igus CF885-40-01 12 AWG 1C Stranded Bare Copper Unshielded PVC 600V Chainflex® CF885 Motor Cable
Allowable Ampacity for Igus CF885-40-01 12 AWG 1C Stranded Bare Copper Unshielded PVC 600V Chainflex® CF885 Motor Cable: 100 Amps
Also Known as:
Control Cable, Chainflex Cable, Chainflex® CF885 Cable, CF885 Cable, Flexible Cable, IGUS Cable, Continues-Flex Cable, Dynamic Cable, Flexing Cable, Flex Cable, Linear Motion Cable
Description:
Chainflex® Motor Cable CF885, Lead Screw Cable/Single Core
Typical application areas:
• For flexing applications
• Without influence of oil
• Preferably indoor applications
• Especially for unsupported travels
• Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
Construction:
• Conductor: Conductor consisting of bare copper wires (according to DIN EN 60228).
• Conductor Insulation: Mechanically high-quality PVC mixture.
• Outer Jacket: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in E-Chains®
Properties and Approvals:
• Flame Resistance: According to IEC 60332-1-2, CEI 20-35, FT1, VW-1
• Silicone-free: Free from silicone which can affect paint adhesion (following PV 3.10.7 – status 1992)
• UL/CSA: Style 10107, 600 V, +80 °C
• NFPA 79: Complies to NFPA 79-2018 chapter 12.9.
• EAC: Certificate No. RU C-DE.ME77.B.01561 (TR ZU)
• CTP: Certificate No. C-DE.PB49.B.00450 (Fire protection)
• Lead-free: Following 2011/65/EC (RoHS-II)
• CE: Following 2014/35/EU
Specification:
AWG Size: 12
Number of Conductor: 1
Rated Cross Section: 4.0 mm²
Conductor: Bare Copper
Insulation: PVC
Jacket: PVC
Shielding Type: Unshielded
Outer Diameter: 0.30 inch
Copper Index: 27.6 lbs/mft
Voltage: 600 V
Weight: 52.4 lbs/mft
Part Number: CF885-40-01
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
