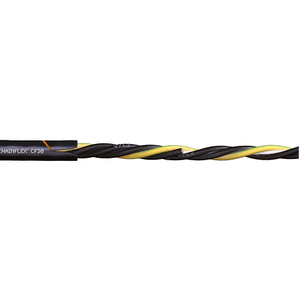

Igus CF30-500-04 1 AWG 4C Stranded Bare Copper Unshielded PVC 1000V Chainflex CF30 Motor Cable

Igus CF30-500-04 1 AWG 4C Stranded Bare Copper Unshielded PVC 1000V Chainflex CF30 Motor Cable

Allowable Ampacity for Igus CF30-500-04 1 AWG 4C Stranded Bare Copper Unshielded PVC 1000V Chainflex CF30 Motor Cable: 100 Amps

Also Known as:

CF30 Cable, Chainflex Cable, Chainflex CF30 Cable, Motor Cable, Flexible Cable, IGUS Cable, Continues-Flex Cable, Dynamic Cable, Flexing Cable, Flex Cable, Linear Motion Cable

Description:

Chainflex Motor Cable CF30

Typical application areas

• For heavy duty applications
• Light oil influence
• Preferably indoor applications, but also outdoor ones at temperatures > 41.0 °F (5 °C)
• Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications
• Storage and retrieval units for high-bay warehouses, machining units/packaging machines, quick handling, indoor cranes

Construction:

Conductor: Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation: Mechanically high-quality, XLPE mixture

Conductor construction: Cores stranded in short pitch length over a centre element for high tensile stresses

Conductor identification: Cores black with white numerals, one core green-yellow.
                                           1.Core: U / L1 / C / L+
                                           2.Core: V / L2
                                           3.Core: W / L3 / D / L-
                                           4. Core: 4 / N

Unshielded: Yes

Outer jacket: Low adhesion, oil resistant mixture on the basis of PVC, adapted to suit the requirements in e-chains (According to EN50363-4-1)

Jacket color: Jet black (similar to RAL 9005)

CFRIP: Quickly stripping: CFRIP tear strip at outer jacket

Properties and Approvals:

UV resistance: Medium
Oil resistance: Oil-resistant (following DIN EN 50363-4-1), Class 2
Flame resistance: According to IEC 60332-1-2, FT1, VW-1
Silicone-free: Free from silicone which can affect paint adhesion (following PV 3.10.7 – status 1992)
UL verified: Certificate No. B129699: igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year
UL/CSA AWM: 1000 V, +80C See data sheet for details  www.igus.com/CF30
NFPA 79: Complies to Electrical Standard for Industrial Machinery NFPA 79 Section 12.9
EAC: Certificate No. RU C-DE.ME77.B.02324 (TR ZU)
CTP: Certificate No. C-DE.PB49.B.00420 (Fire protection)
REACH: REACH In accordance with regulation (EC) No. 1907/2006 (REACH)
Lead-free: Following 2011/65/EC (RoHS-II/RoHS-III)
Cleanroom: According to ISO Class 2. The outer jacket material of this series complies with CF5.10.07 - tested by IPA according to standard DIN EN ISO 14644-1
CE: Following 2014/35/EU

Specification:

AWG Size: 1
Number of Conductors: 04
Rated Cross Section: 50.0 mm²
Conductor: Bare Copper
Insulation: XLPE
Jacket: PVC
Shielding Type: Unshielded
Outer Diameter: 1.34 inch
Copper Index: 1,384.9 lbs/mft
Voltage: 1000 V
Weight: 1,698.7 lbs/mft
Part Number: CF30-500-04
