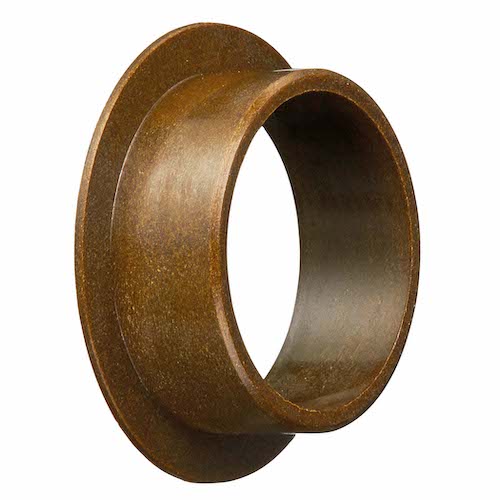

iglide® Z, sleeve bearing with flange, mm

iglide® Z, sleeve bearing with flange, mm
Roll over image to Zoom
iglide® Z, sleeve bearing with flange, mm
Roll over image to Zoom
iglide® Z, sleeve bearing with flange, mm
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: ZFM- 1214-07
Min Length: 1 FT
Max Length: 10000 FT

Categories:

Price:
$0.00 /FT
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

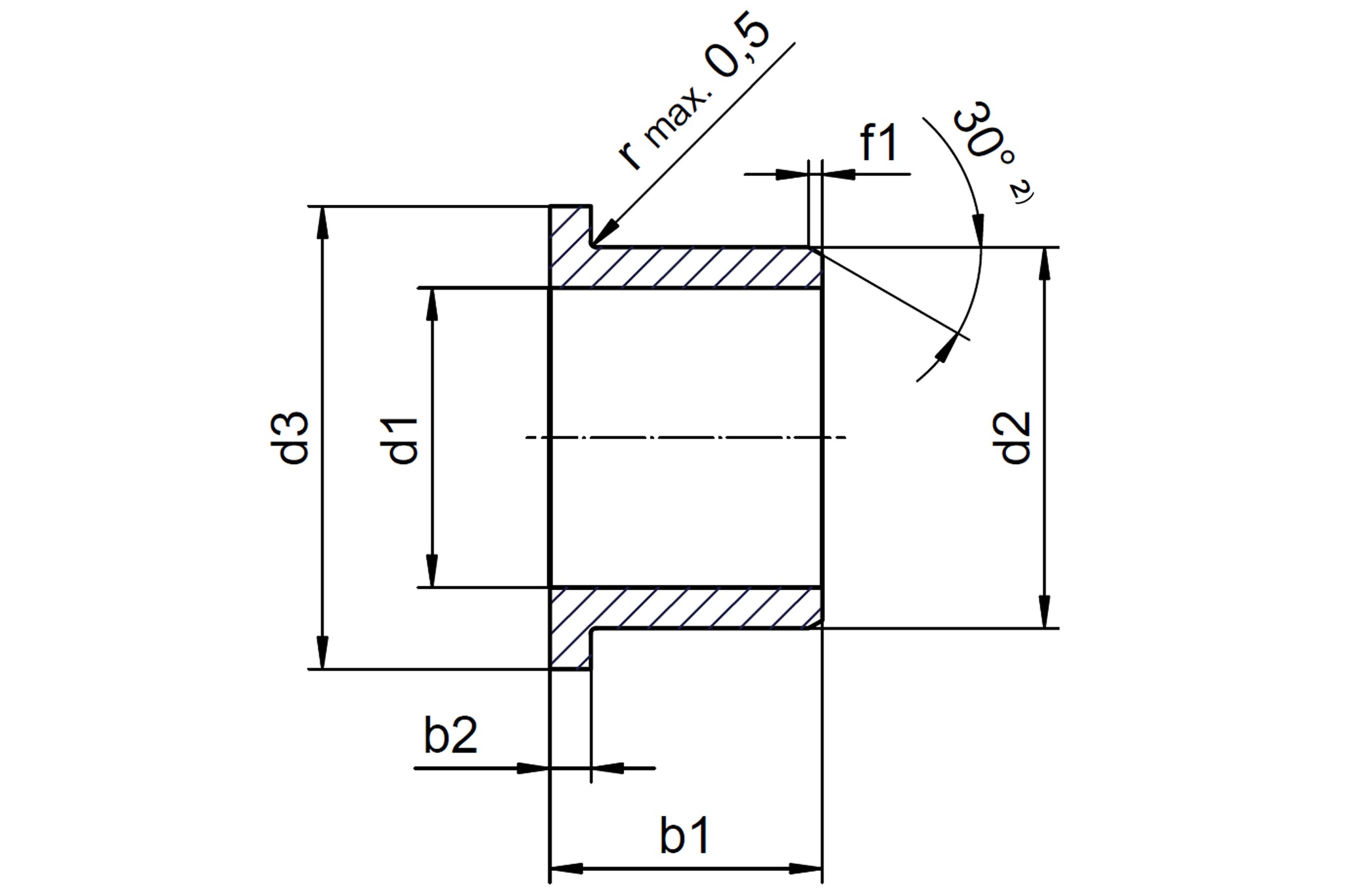

DIMENSIONS:
Length of bevel (f)
   0.5 mm
Outer diameter d2 [mm] 14.0 mm
Flange diameter d3 [mm] 20.0 mm
Bearing length b1 [mm] 7.00  mm
Flange thickness b2 [mm] 1.00 mm
d1-Tolerance bearing +0.016 +0.086 mm, F10
Ø d1 12.0 mm
Bevel angle 30.00 °



PRODUCTION AND INSTALLATION TOLERANCES:
  d1-Tolerance bearing +0.016 +0.086 mm, F10
d3-Tolerance d13
b1-Tolerance h13
b2-Tolerance h13
Housing bore tolerance 0 +0.018 mm, H7
Tolerance shaft 0 -0.043 mm. h9
d1 after press-fit (max.) 12.086 mm
d1 after press-fit (min.) 12.016 mm
Housing bore (max.) 14.018 mm
Housing bore (min.) 14.000 mm
Shaft size (max.) 12.000 mm
Shaft size (min.) 11.957 mm



Description:

  • Excellent wear resistance especially with high loads
  • High thermal resistance
  • For extreme loads
  • For high surface speeds
  • Resistant to edge loads
  • Lubrication and maintenance-free
  • Standard range from stock

Extremely high compressive strength coupled with high elasticity enables iglide® Z bearings to attain their prominent properties in association with soft shafts, edge loads and impacts. The bearings are at the same time suitable for temperatures up to +482 °F.

Features:

  • Extremely long service life under extreme conditions, resistant to wear and impact even at high loads and temperatures
  • Excellent wear resistance especially with high loads
  • High thermal resistance
  • For extreme loads

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
