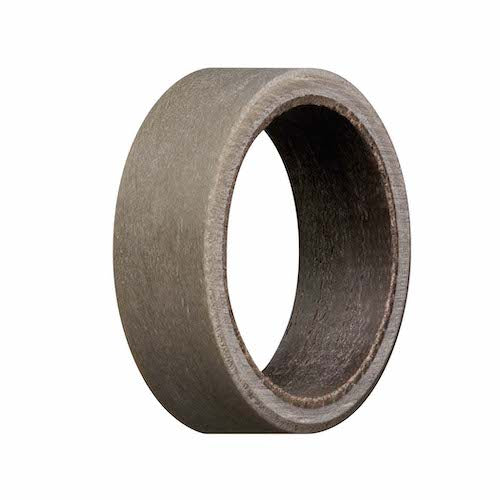

iglide® TX1, sleeve bearing, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
DIMENSIONS:
|
Length of bevel (f) |
0.8 mm |
| Outer diameter d2 [mm] | 25.0 mm |
| Bearing length b1 [mm] | 20.00 mm |
| Ø d1 |
20.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| b1-Tolerance | h13 |
| Housing bore tolerance |
0 +0.021 mm, H7 |
| Tolerance shaft |
0 -0.052 mm. h9 |
| d1 after press-fit (max.) | 20.150 mm |
| d1 after press-fit (min.) | 20.020 mm |
| Housing bore (max.) | 25.021 mm |
| Housing bore (min.) | 25.000 mm |
| Shaft size (max.) | 20.000 mm |
| Shaft size (min.) | 19.948 mm |
Description:
- Up to 29007 psi static and 20305 psi dynamic
- Wear-resistant and dimensionally stable
- Good liquid media resistance
- Lubrication and maintenance-free
- Standard range from stock
iglide® TX1 bearings represent excellent load bearing capacity under high radial loads coupled with good abrasion resistance. The special design not only ensures excellent dimensional stability thanks to the long-fiber winding but also allows lubrication and maintenance-free operation thanks to solid lubricants. High dirt and media resistance round off the list of properties.
Features:
The heavy-duty bearing up to 29007 psi
- Up to 29007 psi static and 20305 psi dynamic
- Wear-resistant and dimensionally stable
- Good liquid media resistance
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
