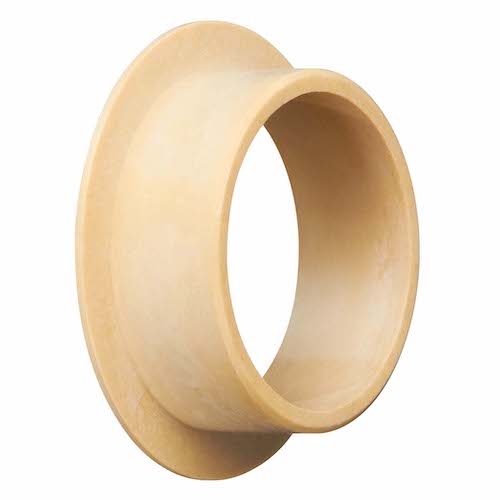

iglide® J350, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

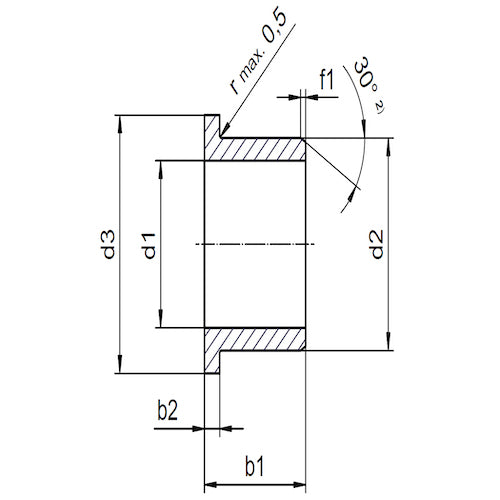

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 8.0 mm |
| Flange diameter d3 [mm] | 12.0 mm |
| Bearing length b1 [mm] | 6.00 mm |
| Flange thickness b2 [mm] | 1.00 mm |
| d1-Tolerance bearing |
+0.010 +0.058 mm, F10 |
| Ø d1 |
6.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.010 +0.058 mm, F10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.015 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 6.058 mm |
| d1 after press-fit (min.) | 6.010 mm |
| Housing bore (max.) | 8.015 mm |
| Housing bore (min.) | 8.000 mm |
| Shaft size (max.) | 6.000 mm |
| Shaft size (min.) | 5.970 mm |
Description:
- Excellent coefficient of friction against steel
- Continuous service temperature up to +356 °F
- For medium and high loads
- Particularly well suited to rotating movement
- Lubrication and maintenance-free
- Standard range from stock
An outstanding bearing for rotating applications – and for a wide range of different shaft materials: With iglide® J350 bearings with flange.
Features:
- Endurance runner with high dimensional stability at high temperature - Can be used with many kind of shafts and loads
- Excellent coefficient of friction against steel
- Continuous service temperature up to +356 °F
- For medium and high loads
- CO2 equivalent: per piece available
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
