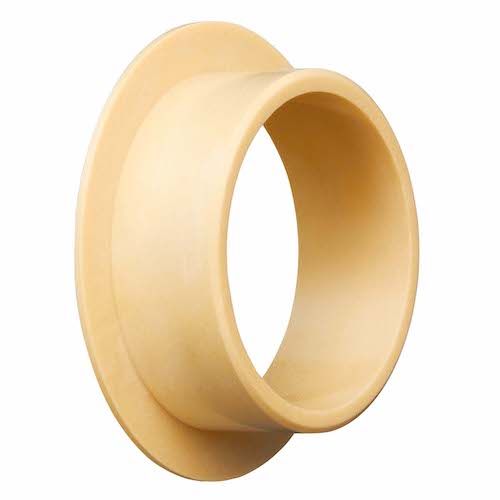

iglide® J260, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 8.0 mm |
| Flange diameter d3 [mm] | 12.0 mm |
| Bearing length b1 [mm] | 6.00 mm |
| Flange thickness b2 [mm] | 1.00 mm |
| d1-Tolerance bearing |
+0.020 +0.068 mm, E10 |
| Ø d1 |
6.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.020 +0.068 mm, E10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.015 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 6.068 mm |
| d1 after press-fit (min.) | 6.020 mm |
| Housing bore (max.) | 8.015 mm |
| Housing bore (min.) | 8.000 mm |
| Shaft size (max.) | 6.000 mm |
| Shaft size (min.) | 5.970 mm |
Description:
- Very good c. o. f. for low or medium loads
- Good liquid media resistance
- Slightly higher temperature rating than iglide® J
- Long life time – even on polymer shafts and other special cases
- Lubrication and maintenance-free
- Standard range from stock
Time and again the iglide® J260 material proves its worth where the maximum service life and best friction coefficients are required under special.
Features:
- Ideal for plastic shafts
- Very good c. o. f. for low or medium loads
- Good liquid media resistance
- Slightly higher temperature rating than iglide® J
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
