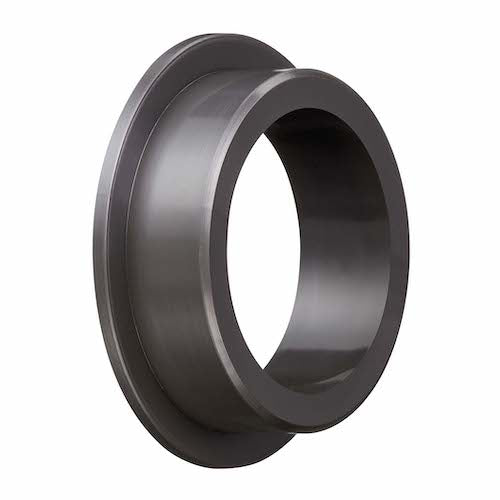

iglide® H, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

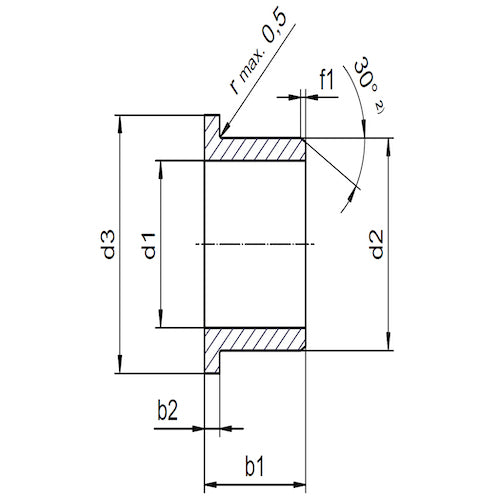

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 7.0 mm |
| Flange diameter d3 [mm] | 11.0 mm |
| Bearing length b1 [mm] | 5.00 mm |
| Flange thickness b2 [mm] | 1.00 mm |
| d1-Tolerance bearing |
+0.010 +0.058 mm, F10 |
| Ø d1 |
5.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.010 +0.058 mm, F10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.015 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 5.058 mm |
| d1 after press-fit (min.) | 5.010 mm |
| Housing bore (max.) | 7.015 mm |
| Housing bore (min.) | 7.000 mm |
| Shaft size (max.) | 5.000 mm |
| Shaft size (min.) | 4.970 mm |
Description:
- Can be used underwater
- For high temperatures
- Resistant to chemicals
- Lubrication and maintenance-free
- Standard range from stock
iglide® H is a fiber-reinforced thermoplastic material especially developed for applications in high atmospheric humidity or under water.
Features:
- High resistance to temperature and chemicals
- Can be used underwater
- For high temperatures
- Resistant to chemicals
*Data provided on this page is subject to change based on different manufacturers' variances
