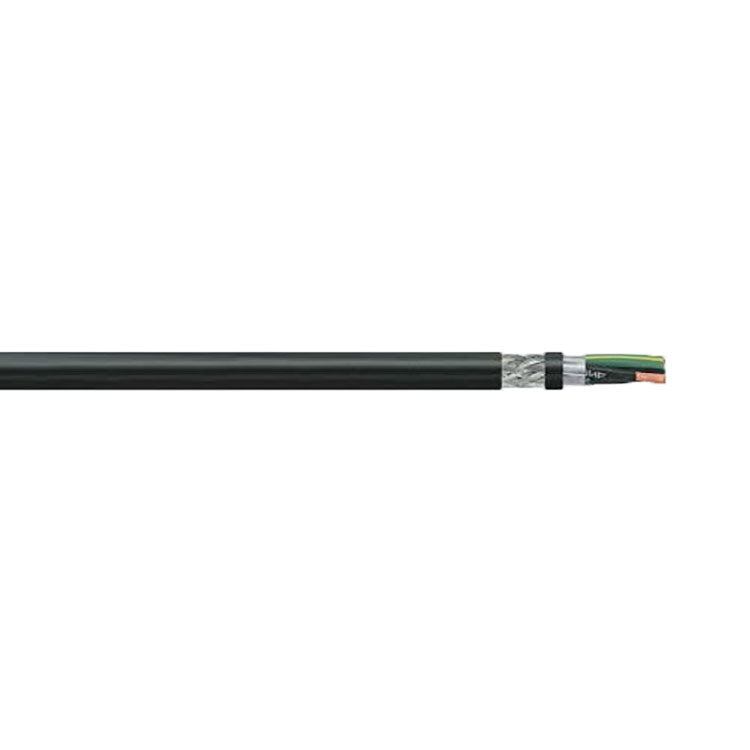

Helukabel 63061 16-25C Bare Copper Screened Oil Resistant Flexible Tray Control Cable 600V

Helukabel 63061 16-25C Bare Copper Screened Oil Resistant Flexible Tray Control Cable 600V

Description:

NFPA 79 Edition 2012 compliant, screened, flexible power cable to 600 V (WTTC 1000 V) for all machinery in new plant construction, Torsion resistant exceptional flexibility and abrasion resistance. Suitable for installation in dry, humid, and damp environments, outdoors, and pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants

Applications:

Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.

Also Known as:

Helukabel 63061 Cable, 16-25C Oil Resistant Cable, 16-25C HELUKABEL Flexible Wire, 16-25C Bare Copper Cable, 16-25C HELUKABEL Tray Control Cable, 16-25C Tray Cable 600V, 16-25C HELUKABEL 600V Wire, 16-25C Screened Tray Control Cable, Helukabel Cable.

Features:

• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification
• Self-extinguishing and flame retardant according to CSA FT4
• Braided screening of tinned copper wires, coverage approx. 85%
• Separating Foil
• Torsion resistant for wind power application

Standards:

UL, ULTC, CSA, NFPA

Specifications:

Size: 16 AWG
Conductors: 25
Jacket: PVC-power cable according to UL-Std. 1277 and UL-Std. 2277
Conductor Material: Bare Copper
Insulation Material: Specially blended PVC/nylon
Color Code: Black with white numbers plus green/yellow ground
Temperature Rating: UL+CSA TC -40°C to +90°C, AWM -40°C to +90°C
Voltage: TC 600 V, AWM 1000 V, WTTC 1000 V
Outside Diameter: 0.768 inches
Weight: 1.679 lb/ft
