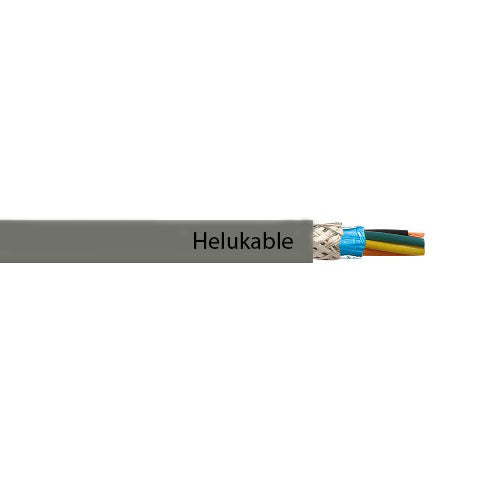

Helukabel 59776 26-25PR TC Oil Resistant Flexible Screened Twisted Pair Data and Control Cable 300V

Helukabel 59776 26-25PR TC Oil Resistant Flexible Screened Twisted Pair Data and Control Cable 300V

Description:

Helukabel 59776 26-25PR TC Oil Resistant Flexible Screened Twisted Pair Data and Control Cable 300V  is a screened, twisted pair data and control cable. Cross-sections with PLTC-ER and ITC-ER approval are suitable for open, unprotected installation in cable trays to the machine; their outstanding oil resistance makes them ideally suited for connecting and joining cables and also for control, signal and measuring systems in industrial plants. The flexible cable structure facilitates installation inside and outside of machines and switch cabinets. The double-screening with aluminum foil and copper braid (approx. 85% coverage) guarantees superior EMC protection.

Also Known as:

Helukabel 59776 Cable, 26-25PR Oil Resistant Cable, 26-25PR HELUKABEL Flexible Wire, 26-25PR Twisted Pair Cable, 26-25PR Tray Control Cable, 26-25PR Data and Control Cable, 26-25PR 300V Wire, Helukabel Cable.

Features:

• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Easier to pull than standard tray cables, minimizing labor costs
• Self-extinguishing and flame retardant according to CSA FT4
• Braided screening of tinned copper wires, coverage

Standards:

UL, CM, AWM 2517, Rated OIL RES I & II, Class 1 Div. 2, NEC Art. 501, 725, 760, & 800, NFPA 79, CSA CMG FT4, AWM I/II A/B FT4

Specification:

Size: 26 AWG
Pairs: 25
Jacket: PVC
Insulation Material: Specially blended PVC
Conductor Material: Tinned Copper
Temperature Rating: -25°C to +105°C
Voltage: 300 V
Outside Diameter: 0.512 inches
Weight: 0.6061 lbs/ft
