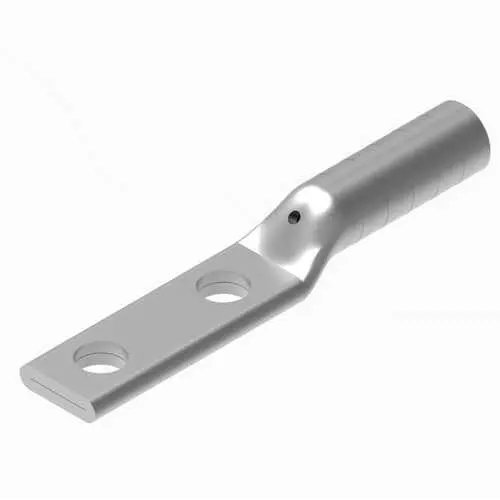

Grounding Tin Plated Lug Connector Burndy YGHHA262NTN

Description :

• Tin Plated Ground Lug, 2/0 STR, 1/2" stud, 4.94" L, 1" W.

    Specifications :

    Connector Type Terminal
    Die Index 15
     Material Copper
    Physical Attribute - Number of Crimps Required 2
    Plated Y
    Plating Type Tin - Electro Plated
    Type Terminals
    UPC 781810285695
    Dimension - B Length fraction 2-3/50 in
    Dimension - B Length inch 2.06 in
    Dimension - D inch 3.02 in
    Dimension - Hole Size inch 0.56 in
    Dimension - Hole Size mm 14 mm
    Dimension - L Length Overall mm 125 mm
    Dimension - Length Overall inch 4.94 in
    Dimension - N inch 0.62 in
    Dimension - Outside Diameter inch 0.71 in
    Dimension - Pad Width inch 0.97 in
    Dimension - Z inch 0.65 in
    Physical Attribute - Tongue Angle Straight
    Conductor - Copper Str Size 2/0 AWG
    Conductor - Copper Str Size Range 2/0 AWG
    Conductor Type
    • CU C Str-Size
    Certification - CSA Approved Yes
    Certification - ETL No
    Certification - UL Recognized No
    Certification - cULus No
    Standards - RoHS Compliance Status CM
    UL Listed Yes
    Minimum Pack Quantity 1
