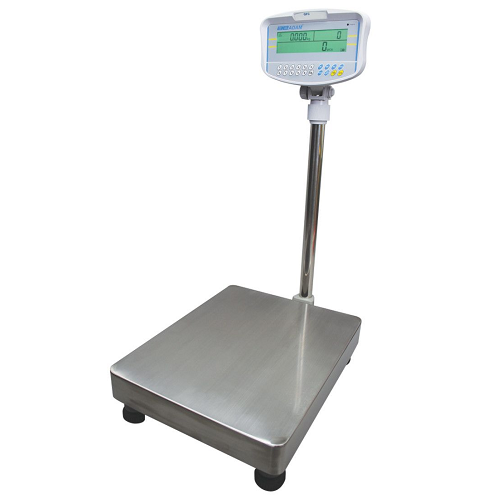

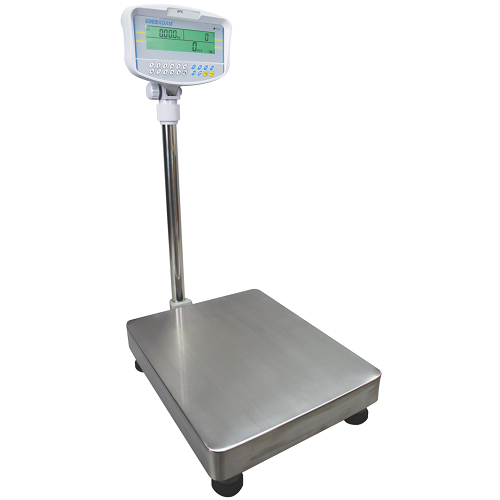

The GFC floor counting scale is designed for efficient checkcounting to a predefined weight or count, featuring a full keypad for easy unit weight and sample entry. Ideal for stock management and inventory control, its large backlit display shows unit weight, total weight, and the number of pieces. With a robust stainless steel platform and a pillar-mounted ABS plastic indicator, the GFC is well-suited for a variety of counting and weighing applications. Additionally, the RS-232 interface enables seamless connectivity to printers and computers for data transfer.
Specifications:
| Type | GFC Floor Counting Scales |
| Capacity | 330lb / 150kg |
| Readability | 0.02lb / 0.01kg |
| Repeatability | 10g |
| Linearity | 20g |
| Pan Size | 19.7" x15.7" / 500x400mm |
| Weighing Units | kg, lb |
| Interface | RS-232/Optional USB |
| Calibration | External calibration |
| Display | Backlit LCD with 0.8" / 20mm high digits |
| Power Supply | 12VDC 800mA adapter / Internal rechargeable battery |
| Operating Temperature | -10° to 40°C / 14° to 104°F |
| Construction | ABS plastic indicator with die-cast aluminum base |
| Overall dims | 15.7"x24.4"x33.9" / 400x620x860mm |
| Part Number | GFC 330a |
Features:
• Backlit LCD shows weight, unit weight and count in one convenient location
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• Adjustable leveling feet help optimize setup
• Color-coded keys facilitate quick recognition of the most frequently used buttons
• Large, grade 304 stainless steel pan allows swift cleaning
• RS-232 interface provides speedy connection to computers and printers
• Parts counting with freely selectable sample sizes
• Parts counting optimization automatically refines piece weight as parts are added
• Preset tare function speeds the process of repetitive weighing
• Rugged construction stands up to industrial use
• Rechargeable battery included for operation almost anywhere
• Programmable auto power-off to save energy
• Audible overload alarm warns when capacity is exceeded
• External calibration allows for verification and adjustment with weights
• Internal counting resolution 1:600,000 for precise results
• Selectable digital filtering helps minimize effects of vibration and disturbances
• Zero-tracking feature ensures display returns to zero reading
• User can program alarm to sound when preset total is reached
