GAR1929, MECHANICAL GROUNDING CONNECTOR, CABLE TO ROD OR PIPE - GAR1929
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
|
Installation Torque Recommended in-lb
|
240 LBS/in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plating Type | Bright Dipped |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR |
| U Bolt Type | 266 |
| Conductor - Copper Solid Size | 2/0 AWG |
| Conductor - Copper Solid Size Range | 2/0 AWG-4/0 AWG |
| Conductor - Copper Str Size Range | 1/0 AWG - 250 kcmil |
| Conductor - Copper Tube Std Size | 2 1/2 IPS IPS |
| Conductor - Pipe or Round Tube Size Range | 2-1/2 in |
| Conductor - Rod Size | 2.5 in-2.88 in |
| Conductor - Rod Size Range | 2 1/2 in-2 7/8 in |
|
Conductor Type |
CU C Solid-Size CU C Str-Size CU Tube Std-Size Rod-Size |
| Part Number |
GAR1929
|
Dimensions :-
| B Length inch | 3.25 in |
| Height inch | 5.00 in |
| Length Overall inch | 1.81 in |
| Width fraction | 4-1/4 in |
| Width inch | 4.19 in |
Description :-

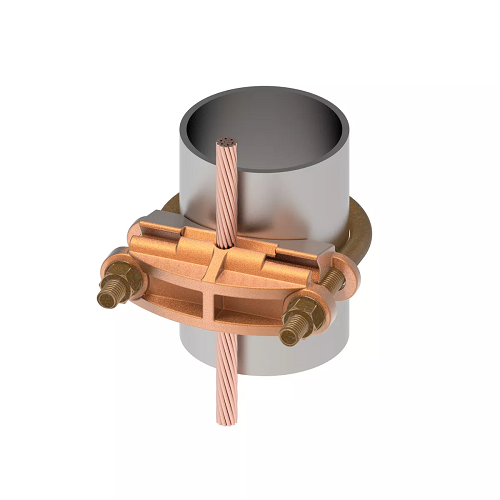

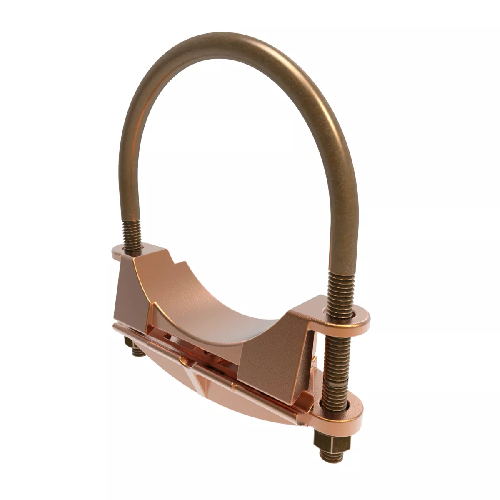

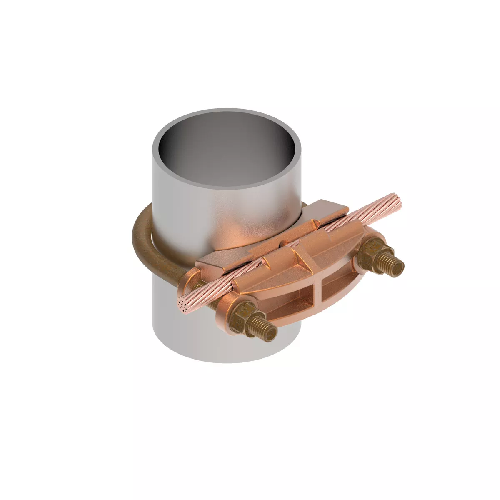

Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol.) - 250 kcmil, 2-1/2" to 2-7/8" Rod, 2-1/2" Pipe, Bright Dipped.
Features :-
High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 2-1/2 - 2-7/8 IN, Tube (ips) Size: 2-1/2 IN, Height: 5 IN, Width: 4-1/4 IN, Installation Torque: 240 IN-LB
Application :-
For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
Download PDF Spec Sheet
