FREEDM Ultra Fiber Single-mode Loose Tube Gel-Free Cable Riser 60 F SMF-28 060ZUF-T4101D20

Product Information

Specification

About :

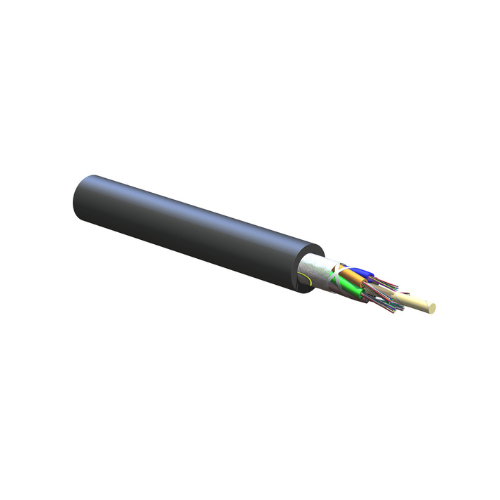

Corning FREEDM loose tube gel-free riser cables are flameretardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. These cables are protected against water penetration by innovative waterblocking materials that swell to absorb water. Waterblocking without the use of messy gels provides more efficient and craft-friendly cable preparation. It also makes cable access easier and simplifies the use of buffer tube fan-out kits. The buffer tubes and fibers in each tube are color coded for quick, easy identification. The SZ-stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy mid-span access. The cable design is also National Electrical Code (NEC) listed (OFNR and FT-4). The all-dielectric cable construction requires no grounding or bonding, and the UV-resistant, flame-retardant jacket is rugged, durable and easy to strip. Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here.

Specifications :

Product Number : 060ZUF-T4101D20
Cable Type : Loose Tube
Environment : Indoor/Outdoor
Product Type : Dielectric
Fiber Category : SMF-28 Ultra fiber
Flame Rating : Riser (OFNR)
Application : Aerial,  Direct Buried,  Duct,  General purpose,  Horizontal
Fiber Count : 60

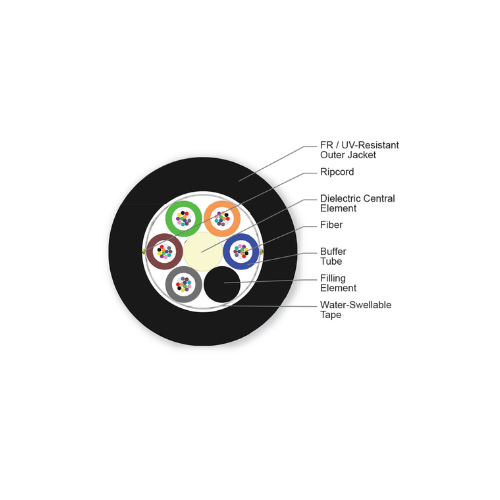

Cable geometry : Round
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Central Element : Dielectric
Fiber Count : 60
Number of Ripcords : 2
Outer Jacket Color : Black
Outer Jacket Material : Flame-Retardant, UV-Resistant
Buffer Tube Color : Blue, Orange, Green, Brown, Slate
Buffer Tube Diameter : 2.5 mm (0.1 in)
Number of Active Tubes : 5
Number of Filling Elements : 1
Number of Tube Positions : 6
Tape : Water-swellable
Fiber Coloring : Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube : 12
Color Code Standards : Telcordia

Features :

• Craft-friendly cable preparation

• Stable performance and compatibility with all common fiber types

• Quick and easy identification

• Requires no grounding or bonding

• Outdoor lashed aerial and duct
