Freedm 12 F Single-mode Ribbon Indoor/Outdoor Riser Gel-Free Cable 012ECF-14101D20

Product Information

Specification

About :

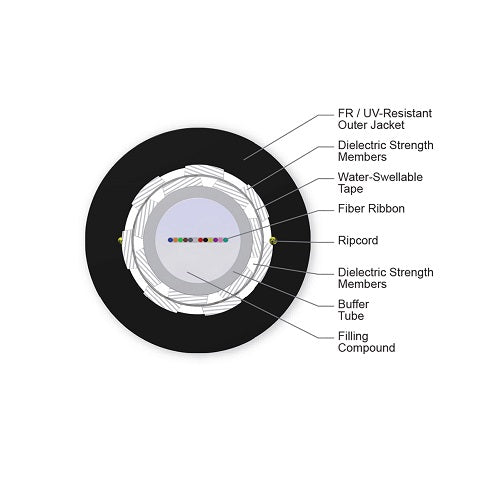

Corning FREEDM ribbon riser cables are lightweight cables designed for indoor/outdoor installations such as campus backbones in aerial, duct and riser applications. A UV-resistant, flame-retardant jacket allows added flexibility in placing this cable outdoors, whether it is an aerial, duct or direct-buried application, or indoor general horizontal or riser applications. The cable consists of a ribbon stack of 12-fiber ribbons within a gel-free central buffer tube. With easily acces-sible individual 250 μm colored fibers, the ribbons have readily identifiable ribbon ID numbers and fiber colors. The precise fiber and ribbon geometries result in excel-lent mass splicing yields. Surrounding the tube are die-lectric strength members that provide tensile strength and innovative waterblocking tapes that reduce cable weight and preparation time. This design is also compatible with standard ribbon cable procedures and hardware for easy field installation and reduced labor costs.

Specifications :

Product Number : 012ECF-14101D20
Environment : Indoor/Outdoor
Cable Type : Ribbon
Product Type : Dielectric
Fiber Category : Single-mode (OS2)
Flame Rating : Riser (OFNR)
Application : Aerial,  Vertical Riser,  Direct Buried,  Duct,  General Purpose Horizontal
Fiber Count : 12
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Buffer Tube Color : Natural
Fiber Count : 12
Buffer Tube Diameter : 56 mm (2.2 in)
Number of Ripcords : 2
Fiber Coloring : Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Outer Jacket Color : Black
Outer Jacket Material : Flame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1 : Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2 : Dielectric strength members
Tape : Water-swellable
Ribbons per Tube : 1
Fibers per Ribbon : 12
Fiber Code : E
Fiber Name : Single-mode (OS2)
Fiber Type : Single-mode
Performance Option Code : 01
Maximum Attenuation : 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D

Features :

• Provide excellent mass fusion splicing results

• Enables use of cables for outdoor applications

• Easy identification

• Rugged, durable and easy to strip

• Easy field installation and reduced labor costs

• Outdoor aerial and duct
