Flush Mount Stainless Steel Emergency Phone VIK-E-1600-30A

Product Information

Specification

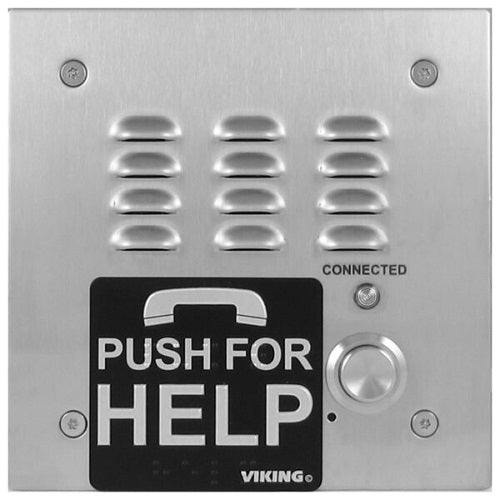

Viking E-1600-30A – Flush Mount Stainless Steel Emergency Phone

About :

The E-1600-30A ADA Compliant Emergency Phone provides hands-free emergency communication for analog phone lines or systems. It meets ADA requirements for elevator and emergency use, dialing up to 5 emergency numbers and 2 central station numbers. It can automatically deliver a location announcement and DTMF code during calls. A “Call Connected” LED can be triggered manually or automatically. The unit is phone line powered, with no external power needed, and stores settings in non-volatile memory. For outdoor installations exposed to weather, the E-1600-30A-EWP model offers enhanced protection.

Also Known As :

Emergency Phone, Emergency Call Box, Hotline Phone, Help Point Phone, Hotline Phone

Specification :

Core Features :

• Automatic Noise Canceling (ANC) feature for clear audio in noisy environments
• Meets the latest ASME A17.1 code when used with a Viking LV-1K Line Verification Panel, see DOD 246
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Advanced call progress detection
• Handsfree operation
• Phone line powered
• Non-volatile memory, no batteries required
• Marine grade 316 stainless steel
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount Box (DOD 424)
