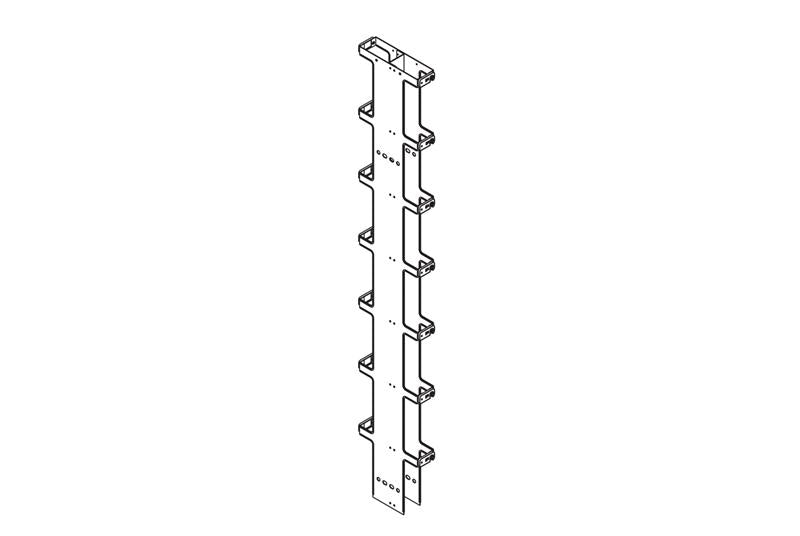

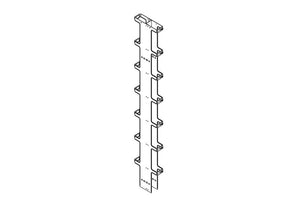

Double-Sided Narrow Vertical Cabling Section Black; 7'H x 3.65"W CPI 12096-703

Product Information

Specification

Use With	45U Rack
Height	7' (2.1 m)
Finish/ Color	Black

Double-Sided Narrow Vertical Cabling Section Black; 7'H x 3.65"W CPI 12096-703

Description:

Provides double-sided 3.65” (92.7 mm) cable run between equipment racks. Oval ports measuring 1.38” x 2.25” (35.1 mm x 51.2 mm) are spaced at 11.62” (295.1 mm) intervals along the center separator for convenient cable and wiring pass-through. Vertical slots secure optional Saf-T-Grip^® Cable Management Straps for neatly bundled cables.

Features and Benefits:

• Bolts to CPI Standard Rack, Universal Rack, QuadraRack 4-Post Frame, and QuadraRack Server Frame
• Includes formed cabling section, lockable cabling latches spaced 12” (300 mm) apart, protective edge guards, and mounting hardware
• .3.65”W x 12.75”D (92.7 mm x 323.9 mm); double-sided cable trough
• 1.38” x 2.25” (35.1 mm x 57.2 mm) oval pass-through ports every 11.62” (295.1 mm)
• 9’ (2.7 m) version consists of 7’ (2.1 m) section with a 2’ (0.6 m) extension
• Mounting hardware included
