Double Banana Plug to MiniPro Clips Breakout Cable CT4457-100 (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Models | CT4457-xxx |
| Impedance | Non-Constant |
| Voltage (Handheld) | 30 Vrms / 60 V dc |
| Voltage (Hands Free) | 500 Vrms |
| Current, Max. | 3 A |
| Operating Temp./Humidity | 0 °C to +50 °C / 25% to 85% RH |
| Altitude | 2,000 m |
| Length ±Tolerance (as noted on product drawing) | 100 ±1.5 cm |
| Cable | RG-58C/U |
| Jack | PVC, Black |
| Jacket O.D. | 4.95 ±0.05 mm |
| Dielectric | Polyethylene (PE) |
| Shield | Tinned Copper Braid (1 layer) |
| Center Conductor | 22 AWG (19/34) Stranded Tinned Copper |
| Impedance | 50 Ω |
| Banana Plug Bodies | Brass, Nickel Plated |
| Insulation | Polypropylene (PP), Black |
| Breakout Housing | PVC, Black |
| Jacket | PVC, Black & Red |
| Wire | 22 AWG, Stranded Tinned Copper (2 mm OD) |
| Body & Barrel | Nylon (PA 6) |
| Contact | BeCU, Gold Plated |
| Compression Spring | Stainless Steel |
| Part No. | CT4457-100 |

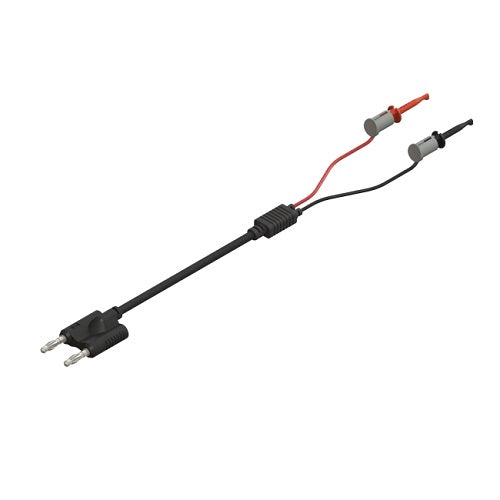

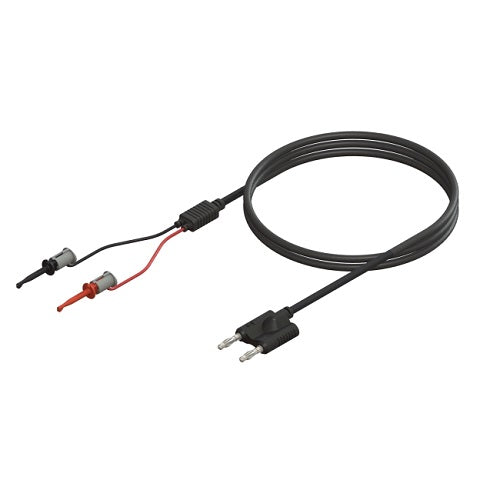

Double Banana Plug to MiniPro Clips Breakout Cable(Pack of 10)
Description:
Although the molded double plug (MDP) is a classic design, their usage in test and measurement is universal and timeless. They are usable with most all major pieces of test equipment such as Power Supplies, Loads, DMMs, and Function Generators, to name just a few.
Molded of durable, flame-retardant Polypropylene (PP), the ergonomic MDP body is easy to handle and connect. The CT4457 uses RG58C/U, 50 Ω coaxial cable.
