Product Information
Specification
| Models | CT4456-xxx |
| Impedance | Non-Constant |
| Voltage (Handheld) | 30 Vrms / 60 V dc |
| Voltage (Hands Free) | 500 Vrms |
| Current, Max. | 3 A |
| Operating Temp./Humidity | 0 °C to +50 °C / 25% to 85% RH |
| Altitude | 2,000 m |
| Length ±Tolerance (as noted on product drawing) | 100 ±1.5 cm |
| Cable | RG-58C/U |
| Jack | PVC, Black |
| Jacket O.D. | 4.95 ±0.05 mm |
| Dielectric | Polyethylene (PE) |
| Shield | Tinned Copper Braid (1 layer) |
| Center Conductor | 22 AWG (19/34) Stranded Tinned Copper |
| Impedance | 50 Ω |
| Banana Plug Bodies | Brass, Nickel Plated |
| Insulation | Polypropylene (PP), Black |
| Breakout Housing | PVC, Black |
| Jacket | PVC, Black & Red |
| Wire | 20 AWG, Stranded Tinned Copper (3 mm OD) |
| Clip | Steel, Nickel Plated |
| Boot | Vinyl, Black & Red |
| Part No. | CT4456-100 |

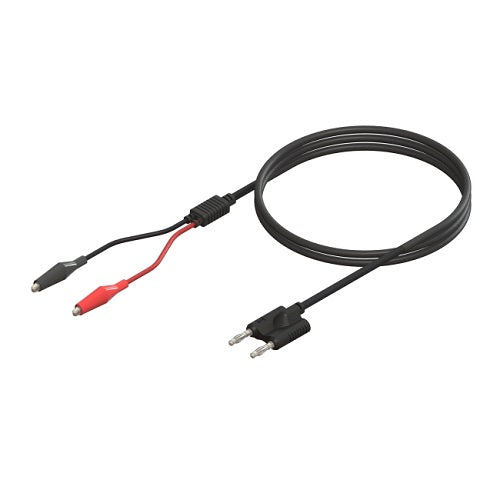

Double Banana Plug to Alligator Clips Breakout Cable(Pack of 10)
Description:
Although the molded double plug (MDP) is a classic design, their usage in test and measurement is universal and timeless. They are usable with most all major pieces of test equipment such as Power Supplies, Loads, DMMs, and Function Generators, to name just a few.
Molded of durable, flame-retardant Polypropylene (PP), the ergonomic MDP is easy to handle and connect. The CT4456 uses RG58C/U, 50 Ω coaxial cable.
