Product Information
Specification
| Note | EDV10-250MK-Q replaces EDV10-250M-Q |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | 10 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | 12 |
| Minimum Copper Conductor Size (AWG) | 12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Sub Brand | StrongHold |
| Seam Type | Butted |
| Product Type | Loose Piece Disconnect Terminal |
| For Use With | CT-1550, CT-1551, CT-2300/ST, CT-2500/L |
| Maximum Voltage (kV) | 0.6 |
| Part No | EDV10-250M-Q |

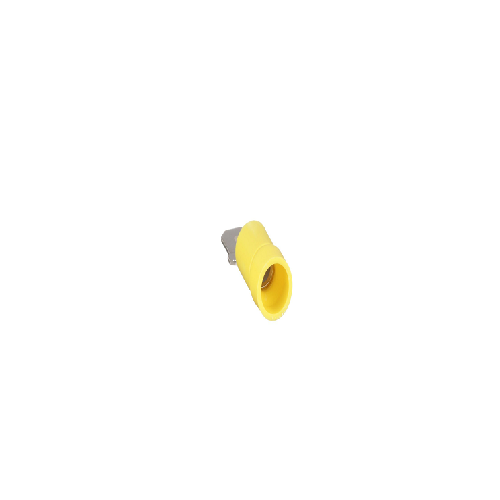

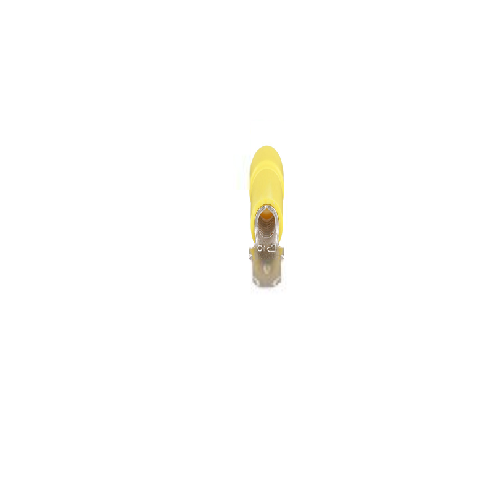

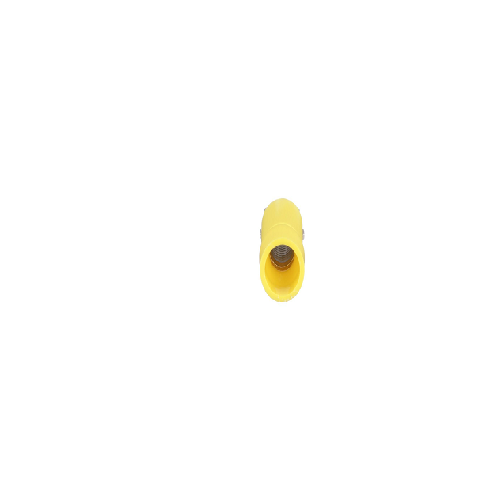

Disconnect Yellow Vinyl 0.98"x0.25" Thick trongHold EDV10-250M-Q
DESCRIPTION :
StrongHold EDV10-250M-Q Contractor Grade Vinyl Insulated Male Disconnects are a reliable and economical option that withstand a wide range of general-purpose applications. They can be easily inserted and removed from the female disconnect without the use of tools. Accommodates 12-10 AWG, 250 x .032 tab size, are yellow in color.
Download PDF Spec Sheet
