Direct Wire Modular Welding Station Duplexes 991F3F2-2

Product Information

Specification

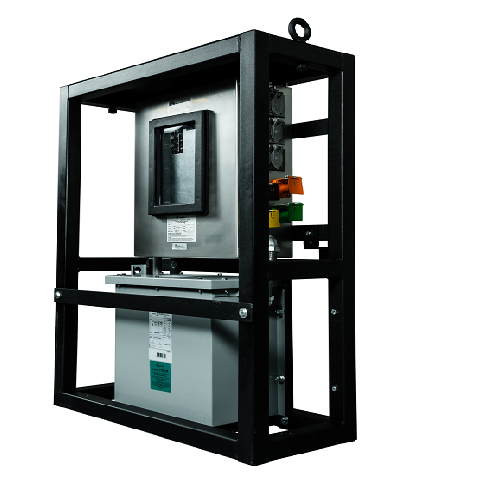

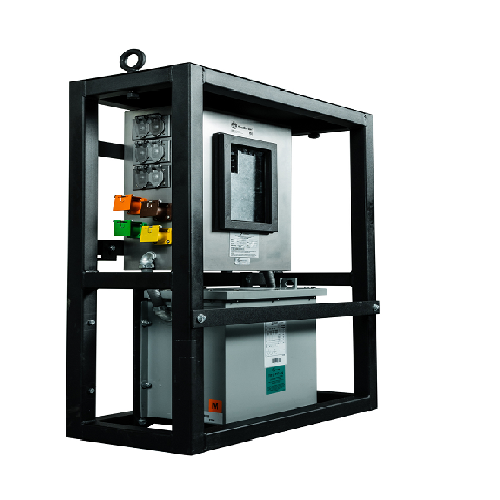

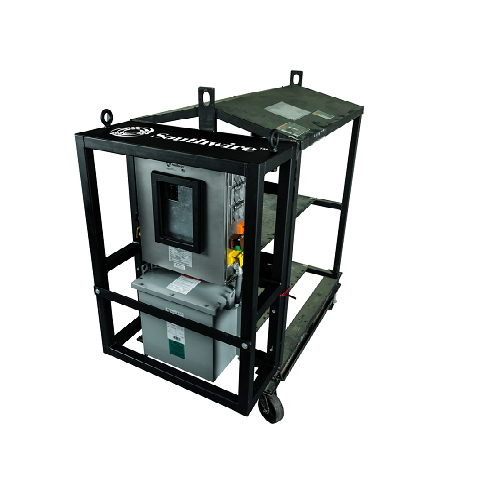

Direct Wire Modular Welding Station Duplexes

Description

The Welding Station is a comprehensive solution for your industrial welding and power distribution requirements. Built by Southwire’s Livermore, CA facility, backed by over 30 years of expertise in temporary power, this unit meets OSHA and NEC standards for safety and performance. Designed to simplify your workflow, the station provides integrated 120V low-voltage power to support all welding-related applications from a single, centralized unit. The modular configuration expands compatibility, enabling seamless integration with welding racks and packs from many leading manufacturers. This gives your team direct access to power for lighting, hand tools, and blowers, eliminating the need to connect to separate equipment.

Features

◑ All welded, painted steel frames and stainless steel enclosures are durable for years of use.
◑ Lifting eye bolts allow ease of mounting and transportation.
◑ Visible window of all circuit breakers allows quick diagnosis for tripped circuits.
◑ UL Listed, NEMA Type 3R Outdoor Rating.
◑ Lifting eye bolts allow ease of mounting and transportation.
120V Power Distribution includes OSHA-mandated Class-A Ground Fault Circuit.
◑ Pre-wired Modular includes 9kVA transformer w/ 6 x 120V 20-Amp NEMA 5-20 Duplex Receptacles.
 ◑ Interrupter for safe use at all job sites.
◑ 480V Primary input and feed-through are easily wired on a single panel or have receptacle options for easy connections. Connections include CAM devices, IEC 60309 pin and sleeve, Meltric, or UL 1890 pin and sleeve devices.
