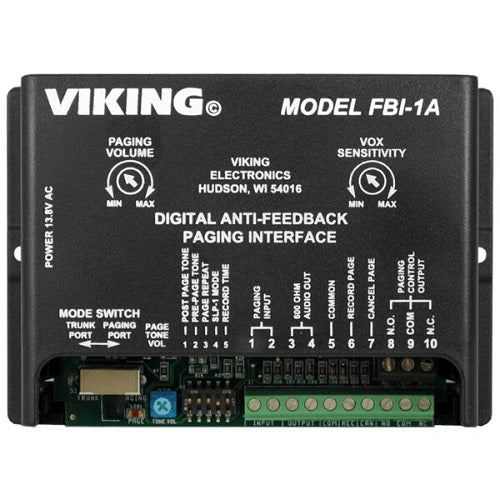

Viking FBI-1A – Digital Anti-Feedback Paging Interface
About :
The FBI-1A utilizes state of the art digital recording technology to record the “live” page from a phone system’s paging port output or unused trunk port. The FBI-1A then immediately plays back the recorded page once or twice (selectable) over the paging system. Pages of up to 32 seconds can be stored and the FBI-1A automatically adjusts to the page length for faster processing.
Also Known As :
Anti-Feedback Paging Controller, Digital Paging Signal Processor, Digital Paging Feedback Eliminator, Paging Interface
Specification :
|
Paging Unit Type |
Paging Adapter |
| Power | 120VAC / 13.8VAC 1.25A UL listed adapter provided |
| Operating Temperature | 32°F to 90°F (0°C to 32°C) |
| Humidity | 5% to 95% non-condensing |
| Output Impedance | 600 Ohm |
| DPDT Relay Contact Rating | 1A @ 30VDC / 0.5A @ 125VAC, 250VAC maximum |
| Connections | (13) cage clamp screw terminals |
Core Features :
• High quality (80K / 40K) digital message storage
• High output – 2V RMS into 600 Ohms
• 16 or 32 second record time (DIP switch selectable)
• Compatible with Paging ports or Trunk ports
• Activate recording from VOX detection, contact closure, or loop detect (Trunk mode only)
• VOX sensitivity adjustment
• Cancel page feature
• Selectable page repeat
• Selectable pre-page alert tone
• Selectable post-page alert tone
• Adjustable alert tone volume
• DPDT relay contacts control paging system
• Record / Playback LED indicator
• Compatible with virtually all paging and telephone systems
