Product Information
Specification
| Type | High Voltage Differential |
| Bandwidth | 35 MHz |
| Cable Length | 100 cm (separate lead) |
| Input Leads Length | 60 cm (separate leads) |
| Weight | 350 g |
| Dimensions | 220 mm x 85 mm x 30 mm |
| Part No | CT4076-NA |
Differential Probe CT4076-NA
Description:
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to the ground.
Model CT4076 features 100x/1000x attenuation settings, 35 MHz bandwidth, and ±7.5 kV maximum differential - all in a compact, safety yellow housing.
Compatible with oscilloscopes from all major manufacturers, the probe is ideal where high sensitivity and dynamic range are needed.
Features:
- Meets IEC 61010-031 safety standard
- Up to ±750 V / ±7.5 kV differential
- 35 MHz bandwidth (-3 dB)
- Excellent CMRR
- Power and over-range indicators

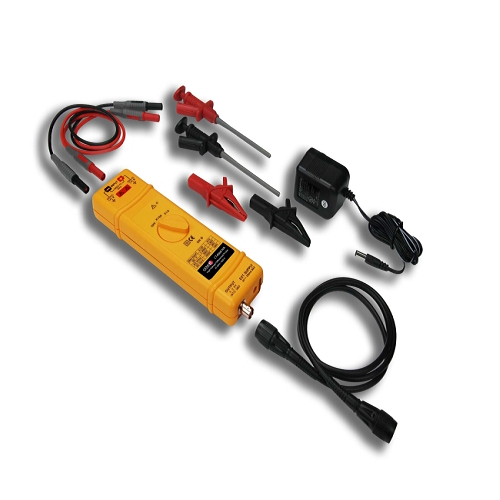

- Kit contains:
- Differential probe
- (2) HV Pincer clips, black & red
- (2) Alligator clips, black & red
- (2) HV Banana plug leads, black & red
- Insulated BNC cable
- 5V AC/DC wall mount adapter (CT4476)
- User manual
User applications include:
- Precise power semiconductor device measurements
- Switching power supply design
- Measurement of power converters
- Precise measurement of motor drives
