Differential Probe CT4068-NA
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Bandwidth | 35 MHz |
| Rise Time | 10 ns |
| Attenuation | 10x/100x |
| Accuracy | ±2% |
| AR CMRR |
-80 dB @ 60 Hz |
| Input Impedance | Between inputs: 9 MΩ // 1.7 pF Each input to ground: 4.5 MΩ // 3.4 pF |
| Differential Voltage (DC+peak AC) | ±80 V/±800 V |
| Common-Mode Voltage (DC+peak AC) | ±800 V or 560 Vrms |
| Absolute Max. Voltage (DC+peak AC) | ±800 V or 560 Vrms |
| Swing | ±8 V (±4 V into 50 Ω load) |
| Source Impedance (Typ.) | 50 Ω |
| Power Supply | 5V AC/DC Wall Mount Adapter 100-240V, 50/60 Hz |
| Power Consumption | 200 mA (about 5 VDC) |
| Operating Temperature/Humidity | 0° to +50° C / 10% to 85% RH |
| Storage Temperature/Humidity | -30° to +70° C / 10% to 90% RH |
| Cable Length | 100 cm (separate leads) |
| Input Leads Length | 60 cm (separate leads) |
| Weight | 250 g |
| Dimensions | 195 mm x 55 mm x 30 mm |
|
Part No |
CT4068-NA |

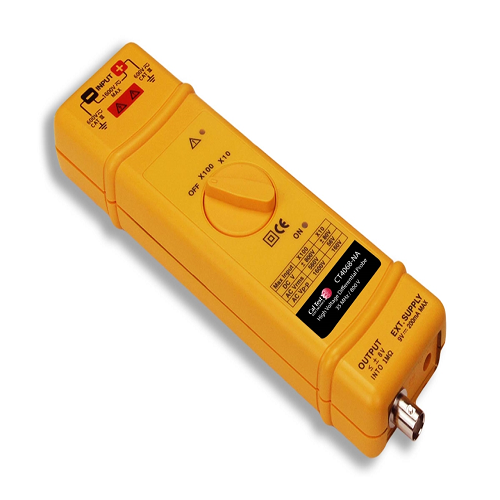

Differential Probe
Description:
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground.
Model CT4068 features 10x/100x attenuation settings, 35 MHz bandwidth, and ±800 V maximum differential - all in a compact, safety yellow housing.
Compatible with oscilloscopes from all major manufacturers, the probe is ideal where high sensitivity and dynamic range are needed.
Features:
◙ Meets IEC 61010-031 safety standard
◙ Up to ±80 V / ±800 V differential
◙ 35 MHz bandwidth (-3 dB)
◙ Excellent CMRR
◙ Power and over-range indicators

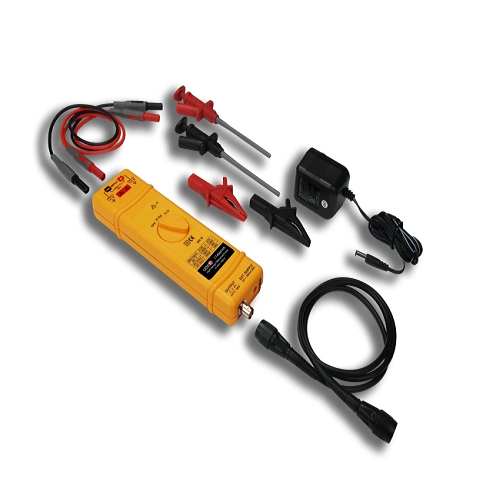

Kit contains:
◙ Differential probe
◙ (2) Pincer clips, black & red
◙ (2) Alligator clips, black & red
◙ (2) Banana plug leads, black & red
◙ Insulated BNC cable
◙ 5V AC/DC wall mount adapter (CT4476)
◙ User manual
User applications include:
◙ Precise power semiconductor device measurements
◙ Switching power supply design
◙ Measurement of power converters
◙ Precise measurement of motor drives
Download PDF Spec Sheet
