Die-Cut Self-Laminating Label Cassette White S100X400VAM (Pack Of 5)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

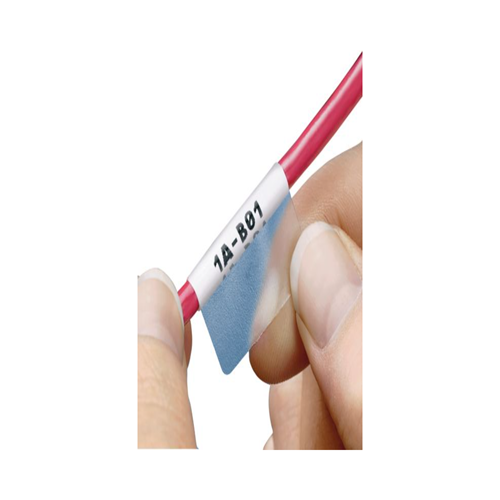

The S100X400VAM Die-Cut Self-Laminating Label Cassette includes both label material and ribbon for easy changeover. Self-laminating adhesive labels for wire/cable identification include a white print-on area and a clear overlaminate. For use with the MP300 printer. Vinyl. 1" x 4" (25.4 mm x 101.6 mm). Wire/Cable Size Range 2 - 1 AWG. Color Clear/White.
Specification :
| Note | For use with MP300 printer |
| Product Type | Self-Laminating Label |
| Sub Brand | PXE™ |
| Color | White |
| Compatible Wire Gauge (AWG) | 2-1 |
| Material | Vinyl |
| Number of Labels per Cassette | 70 |
| Standards Met | RoHS Compliant |
| Minimum Cable Diameter (In.) | 0.32 |
| Minimum Cable Diameter (mm) | 8.1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.3 |
| Label Height (In.) | 4 |
| Label Height (mm) | 101.6 |
| Label Width (In.) | 1 |
| Label Width (mm) | 25.4 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
| Label Application | Cable & Wire Marking |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
Download PDF Spec Sheet
