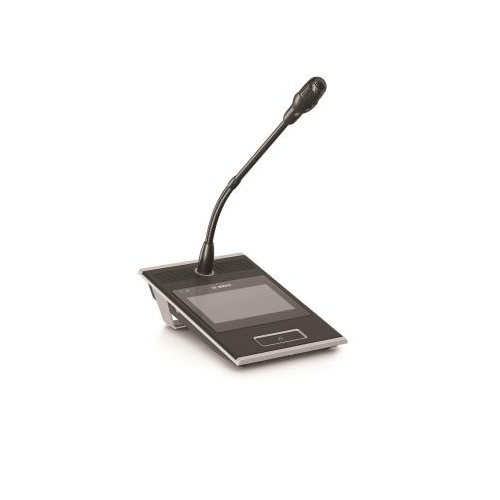

Desktop LCD Call Station PRA-CSLD

Product Information

Specification

About:

• This call station for use in Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD, providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music.
• The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP‑network with Power over Ethernet (PoE) for communication and power supply combined. The housing is fit for surface mounting and flush mounting.

Also Known As:

LCD Intercom Station,  Communication Terminal, LCD Call Panel, Desktop Call Box with Display, Interactive Call Station, LCD Emergency Call Point, Digital Desktop Intercom, Interactive Communication Panel,  Talkback Station

Specification:

• Dimensions : 62 x 130 x 189 mm
• Display resolution : 480 x 272
• Encryption :AES 128
• Frequency response: (-3 dB) (Hz) 20 – 20000 Hz
• Operating temperature (°C) :-5 – 50 °C
• Operating voltage (VDC) :37 – 57 VDC
• Protection: Watchdog
• Protocols / standards :OMNEO
• Sample rate (kHz) :48 kHz
• Touchscreen :Capacitive
• Part no: PRA-CSLD

Features:

• Desktop housing with gooseneck microphone
• 4.3" full‑color capacitive touch screen
• Graphical user interface for optimum user guidance and feedback
• Status and fault indicators for voice alarm purposes
• Dual OMNEO IP‑network connection and redundant Power over Ethernet
