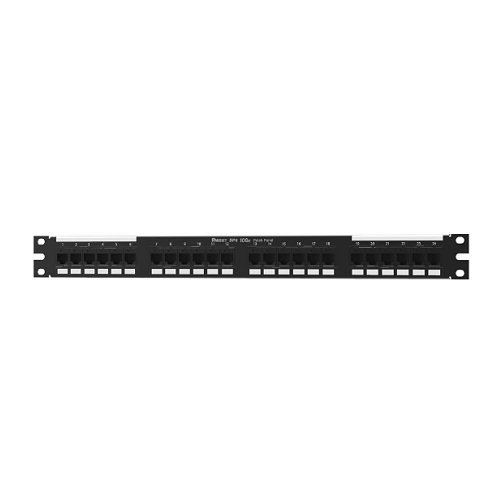

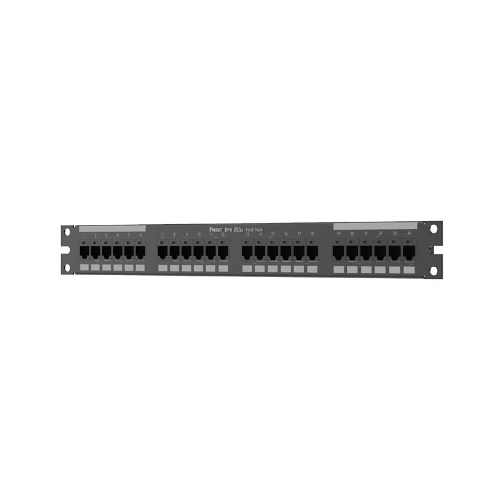

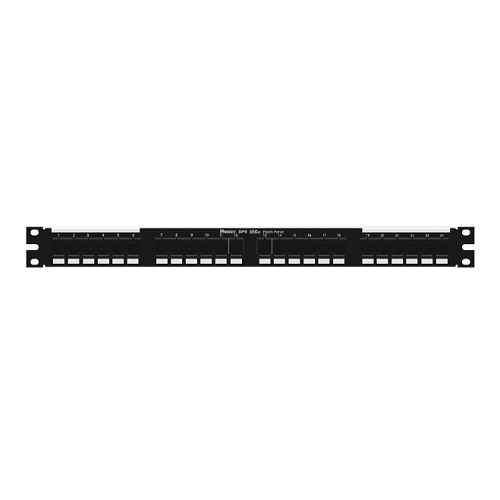

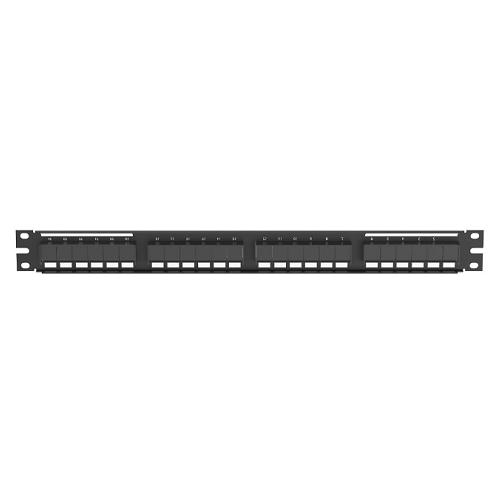

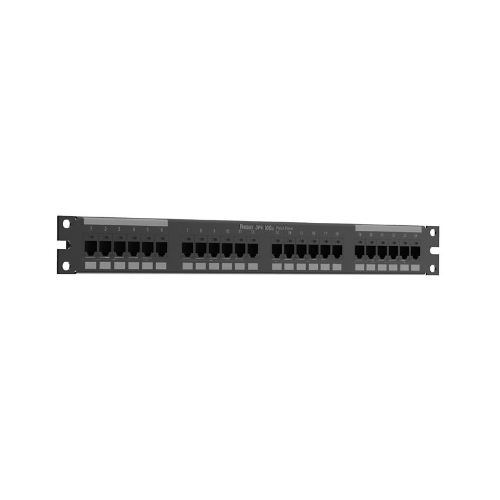

DataPatch Cat6A 10Gig Flat Punchdown Panel

Product Information

Specification

About:

The DataPatch Cat6A 10Gig Flat Punchdown Panel is a structured cabling solution designed to facilitate high-speed network connections in data centers and other high-demand environments. Being Cat6A compliant, it supports network speeds up to 10 Gigabits per second (10Gbps) over longer distances compared to its Cat6 counterpart. The flat punchdown design allows for easy termination of cables without the need for additional tools.

Also Known As:

• 10G Cat6A Punchdown Panel
• DataPatch 10Gig Ethernet Panel
• Cat6A Flat Termination Panel

Common Applications:

• Data centers requiring high-speed network connections.
• Enterprise office environments with heavy data traffic.
• Telecommunications facilities.
• Educational institutions or research facilities that need high-speed data transfer.
• Any other environment requiring reliable and high-speed Ethernet connections.

Standards:

• TIA/EIA-568-C.2: Standard for Cat6A cabling
• ISO/IEC 11801: Specifies general-purpose telecommunication cabling systems
• IEEE 802.3an-2006: Standard for 10GBase-T over twisted pair cabling (Cat6A)
• RoHS compliant, indicating restriction of certain hazardous substances in electronic equipment.

Construction:

• Panel Frame: Typically made from high-quality metal, providing rigidity and durability.

• Ports: Multiple RJ-45 ports where the Ethernet cables are connected.

• Punchdown Blocks: Flat design that allows for the termination of cables in a manner that facilitates easy connection and disconnection.

• Color-Coded Labeling: Often present to assist in correct wire placement during termination.

• Rear Cable Management: Might come with cable management bars or solutions to ensure organized and strain-free cable routing.

Features:

• High-Speed Support: Facilitates up to 10Gbps data transmission, perfect for high-demand applications.

• Ease of Installation: The flat punchdown design simplifies the termination process, reducing installation time.

• Enhanced Noise Resistance: Cat6A cabling provides better protection against electromagnetic interference (EMI) and crosstalk.

• Compatibility: Designed to be compatible with both T568A and T568B wiring schemes.

• High-Density Design: Can accommodate multiple ports in a compact form factor, saving rack space.
