DataPatch Cat6 Plus Angled Punchdown Panel

Product Information

Specification

About:

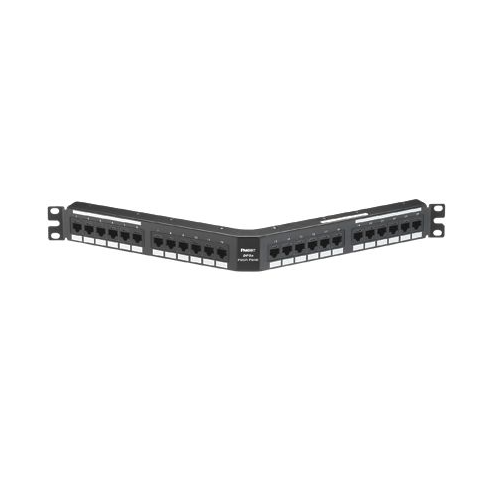

The DataPatch Cat6 Plus Angled Punchdown Panel is a structured cabling component designed to terminate and organize Cat6 Plus cables. It's built for advanced networking setups that require higher data rates and bandwidth than Cat5e. The angled design aids in efficient cable management, ensuring reduced strain on cables and a cleaner installation.

Also Known As:

• Cat6 Plus Angled Patch Panel
• Advanced Cat6 Angled Termination Panel
• Premium Cat6 Angled Punchdown Panel

Common Applications:

• Data Centers: Serving as a hub to manage and organize high-speed network connections in centralized locations.
• High-Bandwidth Office Networks: For businesses and institutions that require advanced networking capabilities for activities like large-scale data transfers, video conferencing, and cloud computing.
• Telecommunication Rooms: Centralized point in commercial buildings for managing and routing network connections.
• Server Racks: Providing a neat and efficient way to manage network connections to servers and other high-speed network devices.

Standards Met:

Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz. Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved, RoHS Compliant

Construction:

• Panel Material: Often made from durable metals such as steel, with potential finishes for both aesthetics and protection.
• Punchdown Type: Likely 110-style terminations, a standard in structured cabling.
• Angled Design: The panel incorporates an angled approach to enhance cable routing, reduce the need for additional cable management components, and alleviate cable strain.
• Port Labeling: Ports are typically clearly numbered or have options for custom labeling for easy identification.

Features:

• Enhanced Data Rates: Being a Cat6 Plus, it can support higher data rates than standard Cat6, potentially nearing or meeting Cat6A capabilities.
• Optimized Cable Management: The angled design ensures cleaner installations by reducing cable clutter and improving airflow in racks.
• High-Density Options: These panels might come in high-density configurations, offering a large number of ports in a compact space.
• Ease of Installation: Designed to fit seamlessly into standard racks or cabinets, often with the necessary mounting hardware included.
• Future-Proofing: By supporting advanced Cat6 capabilities, this panel is poised to handle future networking demands better than older generation panels.
