DataPatch Cat5e Angled Punchdown Panel

Product Information

Specification

About:

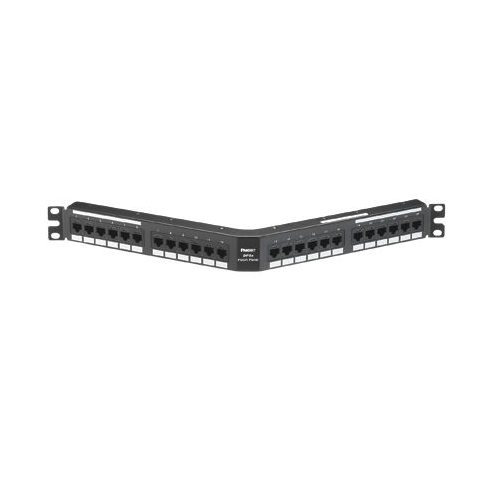

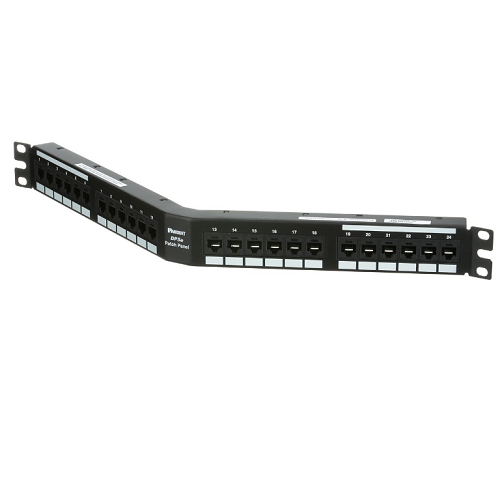

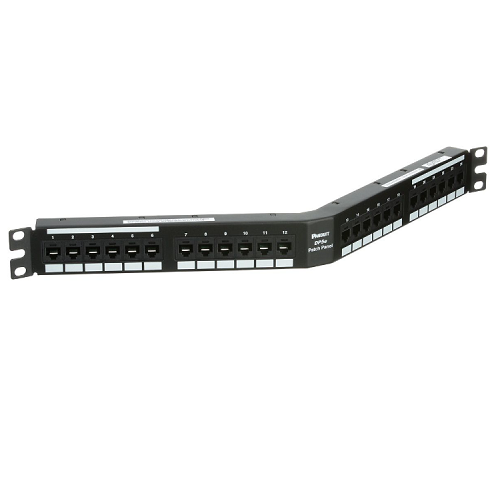

The DataPatch Cat5e Angled Punchdown Panel is designed for structured cabling solutions. This panel facilitates the termination of Cat5e cables in a rack or cabinet setting. The angled design reduces the need for additional horizontal cable management, simplifying cable routing and saving space.

Also Known As:

• Cat5e Angled Patch Panel
• Angled Termination Panel
• Cat5e 110-Type Angled Patch Panel

Common Applications:

• Data Centers: For organizing and routing network cables.
• Office Networks: Streamlining the connection of multiple devices in an office environment.
• Telecommunication Rooms: To create a centralized location for network connections.
• Server Racks: Helps in efficient cable management and organization within server racks.

Standards Met:

• TIA/EIA-568-C.2 (Standard for Cat5e cables)
• RoHS compliant (Restriction of Hazardous Substances)
• Possibly ISO/IEC 11801 (If internationally standardized)

Construction:

• Panel Material: Typically made from robust metals like steel with a black powder-coat finish for durability and aesthetics.
• Punchdown Type: 110-style terminations, which is a standard for structured cabling.
• Angled Design: The panel is designed at an angle to facilitate better cable routing and reduce strain on the cables.
• Port Labeling: Ports on the panel are usually numbered or can be labeled for easy identification.

Features:

• Efficient Cable Management: The angled design minimizes the need for horizontal cable management bars or additional rack space.
• High-Density Ports: Depending on the design, the panel may offer a high number of ports in a compact space.
• Ease of Installation: The panel usually comes with mounting hardware and is designed for easy installation in standard racks or cabinets.
• Compatibility: Supports Cat5e performance, ensuring compatibility with standard Ethernet and network protocols.
• Clear Labeling: Ports might come with clear labeling options for easy identification and troubleshooting.
