Corning Multi Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable

Corning Multi Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable
Roll over image to Zoom

Corning Multi Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable

SKU: NNC25970X

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

  Product Name Length Price (Per FT.) Action
Corning 008KD8-31130-20 8 Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable
Product Name

Corning 008KD8-31130-20 8 Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable

Length
/FT
Price (Per FT.)
Call 516-482-6313 for pricingOut Of Stock
Min: 1 FT
Max: 1000000 FT
Action

Corning 012KD8-31130-20 12 Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable
Product Name

Corning 012KD8-31130-20 12 Fiber OM1 62.5µm Plenum Multimode Mic 250 Interconnect Cable

Length
/FT
Price (Per FT.)
Call 516-482-6313 for pricingOut Of Stock
Min: 1 FT
Max: 1000000 FT
Action

Product Information

Specification

Description:

•

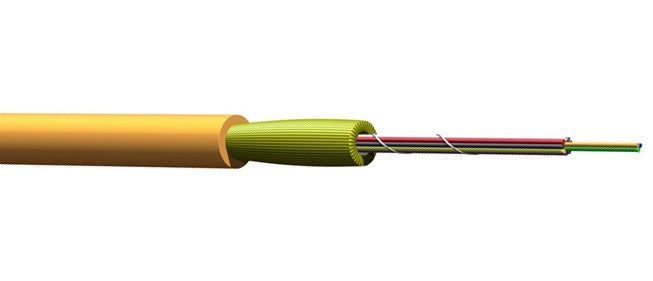

Corning Cable Systems MIC® 250 Cables utilize 250 μm color -coded optical fibers, surrounded by dielectric strength members with a flexible, flame -retardant outer jacket. These cables are ideal for creating multifiber preconnectorized assemblies as the 12 -fiber groupings enable efficient compatibility with multifiber connectors. The flexible, flame -retardant jacket and non -preferential bend axis allow easy installation in space -constrained areas and the all -dielectric cable construction requires no grounding or bonding. The MIC 250 Cables meet the application requirements of the National Electrical Code® (NEC Article 770) and are OFNP and FT -6 listed for plenum, riser or general purpose applications.

This cable is available in 12 different jacket colors - blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua.

Features and Benefits:

• Color-coded fibers
  Quick and easy identification
• 12-fiber groupings
  Compatibility with multifiber connectors
• All-dielectric construction
  Requires no grounding or bonding

Standards:

• Approval and Listings: National Electrical Code® (NEC®) OFNP, CSA FT-6, ICEA S-83-596
• Flame Resistance: NFPA 262 (for plenum, riser and general building applications)

Temperature Range:

• Storage: -40 °C to 70 °C (-40 °F to 158 °F)
• Installation: 0 °C to 60 °C (32 °F to 140 °F)
• Operation: 0 °C to 70 °C (32 °F to 158 °F)

Chemical Characteristics:

• RoHS: Free of hazardous substances according to RoHS 2002/95/EG

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
