Corning 432EVF-14101DA1 432 Fiber OS2 Riser Freedm UltraRibbon Interlocking Armored Gel Free Cable

Corning 432EVF-14101DA1 432 Fiber OS2 Riser Freedm UltraRibbon Interlocking Armored Gel Free Cable
Roll over image to Zoom

Corning 432EVF-14101DA1 432 Fiber OS2 Riser Freedm UltraRibbon Interlocking Armored Gel Free Cable

SKU: NNC25493X
Min Length: 1 FT
Max Length: 10000 FT
Regular price
$0.00 /FT
Sale price
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries


Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460


Live Chat: Bottom Right Corner!

Email Us

Product Information

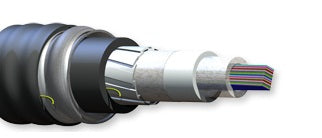

Corning FREEDM® UltraRibbon™ riser interlocking armored cables continue the innovative breakthrough in indoor/outdoor cable technology with a new generation of high-fiber-count single tube cables. These cables are designed to maximize the use of critical duct space with excellent installation results. Encased in spirally-wrapped aluminum interlocking armor for ruggedness and superior crush resistance, the cables are ideal for industrial and heavy traffic areas and installations requiring extra protection for optical cables. The UV-resistant, flame-retardant jacket allows this cable to be installed outdoors or in indoor general purpose horizontal and riser applications. The cable employs a single buffer tube containing a stack of 24- and 36-fiber ribbons that are easily separated by hand into two or three 12-fiber ribbons respectively.

Features And Benefits:

• Precise fiber and ribbon geometries
  Excellent mass splicing yields
• Waterblocked cable
  Enables use of cables for outdoor applications
• 12-fiber ribbons with ribbon IDs
  Easy identification
• UV-resistant, flame-retardant jacket
  Rugged, durable and easy to strip
• Available in preconnectorized assemblies
  Easy field installation and reduced labor costs
• 288-432 fibers in a compact design
  Maximizes use of critical duct space
• Common installations
  Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770


• Listings: National Electrical Code® (NEC®) OFNR
• Design Criteria: CSA OFN FT-4
• Test Criteria: ANSI/ICEA S-104-696, Telcordia GR-409 and GR-20

Temperature Range:

• Storage: -50 °C to 70 °C (-58 °F to 158 °F )
• Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU


All-Dielectric NO
Armored YES
Cable Type RIBBON
Fiber Count 432
Fire Rating RISER
Rodent Protected NO

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
