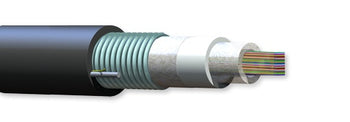

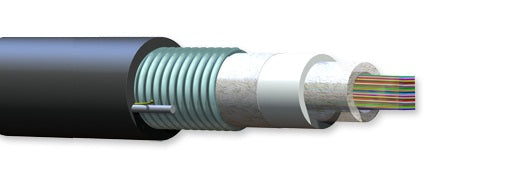

Corning 432EV5-14100D53 432 Fiber OS2 SST UltraRibbon Single Tube Gel Free Armored Cable

Description:

• Corning SST-UltraRibbon™ gel-free cables continue the innovative breakthrough in outdoor cable technology by introducing a new generation of high-fiber-count gel-free cables. Providing high-fiber-counts in a rugged, compact design, the enhanced coupling features ensure the ribbon stack and cable act as one unit, providing long-term reliability in aerial, duct and direct-buried applications. These features also minimize ribbon movement in situations where cable vibration may occur. The cable consists of a single buffer tube containing 24-fiber and 36-fiber ribbons wrapped within a water-swellable foam tape and surrounded by a second water-swellable tape. Each 24-fiber and 36-fiber ribbon can be easily separated by hand into 12-fiber ribbons. Strength members located 180 degrees apart under the cable jacket provide tensile and anti-buckling strength. The cable is jacketed with a black UV-resistant polyethylene sheath.

Features And Benefits:

• Gel-free waterblocking technology
  Craft-friendly cable preparation
• Innovative waterblocking technology
  Provides ribbon to cable coupling
• Up to 432 fibers in a compact design
  Easily fits in 1.25-in diameter inner duct
• Each 12-fiber ribbon individually numbered
  Easy identification

Standards:

• Approvals and Listings: RDUP PE-90 Listed
• Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20
• Common Installations: Outdoor lashed aerial, duct and direct-buried; indoor when installed according to National Electrical Code® (NEC®) Article 770

Temperature Range:

• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
