Corning 048TCF-14190-A1 48 Fiber OM4 50µm Riser Freedm Ribbon Interlocking Armored Gel Filled Cable

Corning 048TCF-14190-A1 48 Fiber OM4 50µm Riser Freedm Ribbon Interlocking Armored Gel Filled Cable
Roll over image to Zoom

Corning 048TCF-14190-A1 48 Fiber OM4 50µm Riser Freedm Ribbon Interlocking Armored Gel Filled Cable

SKU: NNC25405X
Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$0.00 /FT
Sale price
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

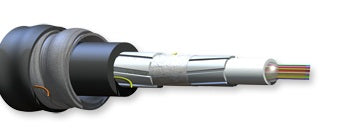

• Corning FREEDM® ribbon interlocking armored, gel-filled riser cables continue the innovative breakthrough in indoor/outdoor cable technology with a new generation of high-fiber-count single tube cables. These cables are designed to maximize the use of critical duct space with excellent installation results. Encased in spirally -wrapped aluminum interlocking armor for ruggedness and superior crush resistance, the cables are ideal for industrial and heavy traffic areas and installations requiring extra protection for optical cables. The UV-resistant, flame-retardant jacket allows this cable to be installed outdoors or in indoor general purpose horizontal and riser applications. The cable employs a single buffer tube containing a stack of 12 fiber ribbons within a gel-filled central buffer tube.

Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.

Features And Benefits:
• Precise fiber and ribbon geometries
  Excellent mass splicing yields
• Waterblocked cable
  Enables use of cables for outdoor applications
• 12-fiber ribbons with ribbon IDs
  Easy identification
• UV-resistant, flame-retardant jacket
  Rugged, durable and easy to strip
• Flexible interlocking armor
  Up to seven times the crush protection compared to non-armored cables
• Common installations
  Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770

Standards:
• Listings: National Electrical Code® (NEC®) OFNR
• Design Criteria: CSA OFN FT-4
• Test Criteria: ANSI/ICEA S-104-696

Temperature Range:
• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
