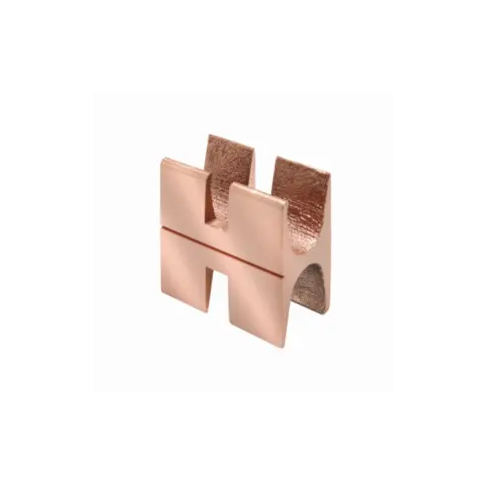

Copper Split Compression Connector Burndy YSHG4429

Description :

• Copper Compression Double H- Tap Connector, 2 AWG - 250 kcmil (Tap), #8 & #9 Rebar/ 1" Ground Rod.
• Features: UL467 Listed: Suitable For Direct Burial In Earth Or Concrete, Material Is High Conductivity Copper Extrusion: Minimizes Resistance, Eliminates Corrosion Due To Dissimilar Metals, Grooves Are Prefilled With PENETROX E2 Oxide Inhibitor And Individually Sealed: Inhibits Moisture And Contaminants Ensuring Electrical Integrity, Ground Rod Size: 1 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (2), Rebar Size: #8, #9, Wire Entry: Double, Conductor Type: Run: Rebar, Ground Rod, Tap1: Copper Wire, Tap2: Copper Wire, Tap3: Copper Wire, Die Index: KR Element A, Shape: H, Conductor Size (tap Range): 2 AWG - 250 KCMIL

    Specifications :

    Application For Direct Burial In Earth Or Concrete
    Connector Type H-Tap
    Die Index KR
    EU RoHS Indicator Yes
     Material Copper
    Plated N
    Plating Type Unplated
    Sub Brand CRIMPIT
    Trade Name HYGROUND®
    Type Taps
    UPC 781810128657
    Dimension - Length Overall inch 2.44 in
    Dimension - Width inch 3.22 in
    Dimension - Width mm 82 mm
    Conductor - Copper Str Tap 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
    Conductor - Copper Str Tap Range 2 AWG-250 kcmil
    Conductor - Rebar Run 8 ;9
    Conductor - Rebar Run Range 8 -9
    Conductor - Rod Run 1 in
    Conductor - Rod Run Range 1 in
    Certification - CSA Approved No
    Certification - ETL No
    Certification - UL Listed Direct Burial Yes
    Certification - UL Recognized No
    Certification - cULus No
    Industry Standard(s) UL 467, Direct Burial
    Standards - Industry Standards Met UL467
    Standards - RoHS Compliance Status CM
    UL Listed Yes
    Minimum Pack Quantity 1
