Copper HYTAIL™ Compression Ground Rod Connector Burndy YGHR26C12TN
Description :

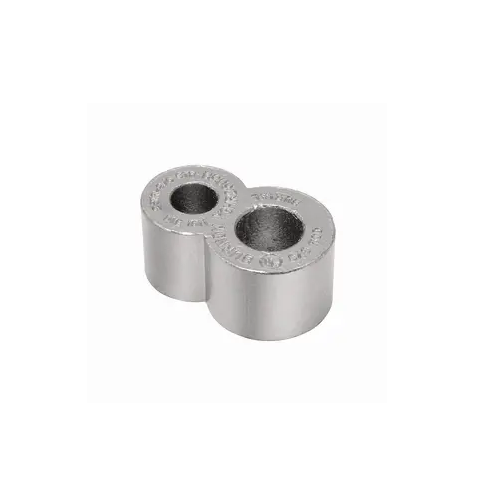

• HYTAIL™ Ground Rod Figure 8 Compression Tap Connector.
Specifications :
| Connector Type | Tap |
| Die Index | 998;1012 |
| Material | Copper |
| Oxide Inhibitor Type | Penetrox E |
| Physical Attribute - Number of Crimps Required | 1 |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYTAIL™ |
| Type | Taps |
| UPC | 621945150591 |
| Dimension - B Length fraction | 22/25 in |
| Dimension - B Length inch | 0.88 in |
| Dimension - Ground Rod Size | 1/2 |
| Dimension - Height fraction | 1-47/50 in |
| Dimension - Height inch | 1.94 in |
| Dimension - L Length Overall mm | 22 mm |
| Dimension - Length Overall inch | 0.88 in |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range | 2 AWG - 2/0 AWG |
| Conductor - Rod Size | 1/2 in |
| Conductor - Rod Size Range | 1/2 in |
| Conductor Type |
|
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) |
|
| Standards - Industry Standards Met | UL467;IEEE 837 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 12 |
