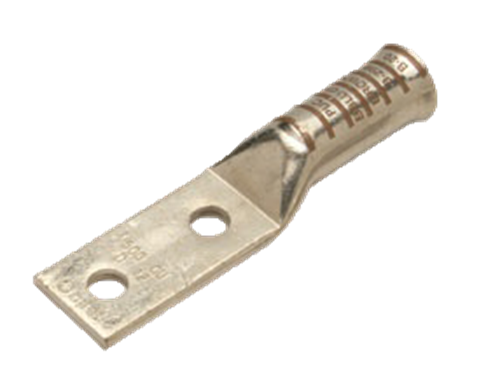

COPPER COMPRESSION LUG - LONG FLARED BARREL, TWO HOLE TONGUE WITH CLOSED TRANSITION 650 KCMIL - BBLU-065D-FL
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Compression Lug |
| Copper Conductor Size | 650 kcmil |
| W (in.) | 1.78 |
| C (in.) | 3.00 |
| B (in.) | 2.81 |
| T (in.) | 0.27 |
| L (in.) | 6.68 |
| Stud Hole Size | 1/2" |
| Stud Hole Spacing (in.) | 1.75 |
| Color Code | Pink |
| Burndy Die Index No | 300 |
| Penn-Union Die Catalog No. | T-300 |
| Wire Strip Length | 2-15/16" |
| Part Number | BBLU-065D-FL |
COPPER COMPRESSION LUG - LONG FLARED BARREL, TWO HOLE TONGUE WITH CLOSED TRANSITION 650 KCMIL - BBLU-065D-FL
Key Features :-:
- ☛ Suitable for use with Class B, C, I, K, H, G, M and DLO conductors
- ☛ Manufactured from high conductivity seamless copper tubing
- ☛ Tin-plated to inhibit corrosion
- ☛ Flared barrel entry provides easy cable insertion for fine stranded flexible cables and minimizes strain during flexing and movement
- ☛ Closed transition protects end of cable from environmental conditions
- ☛ Two-hole mounting pad assures maximum secureness
- ☛ Long barrel provides high pull out force and added secureness for improved mechanical and electrical properties
- ☛ Color coded barrel is marked with die index number
- ☛ Suitable for voltages up to 35 KV

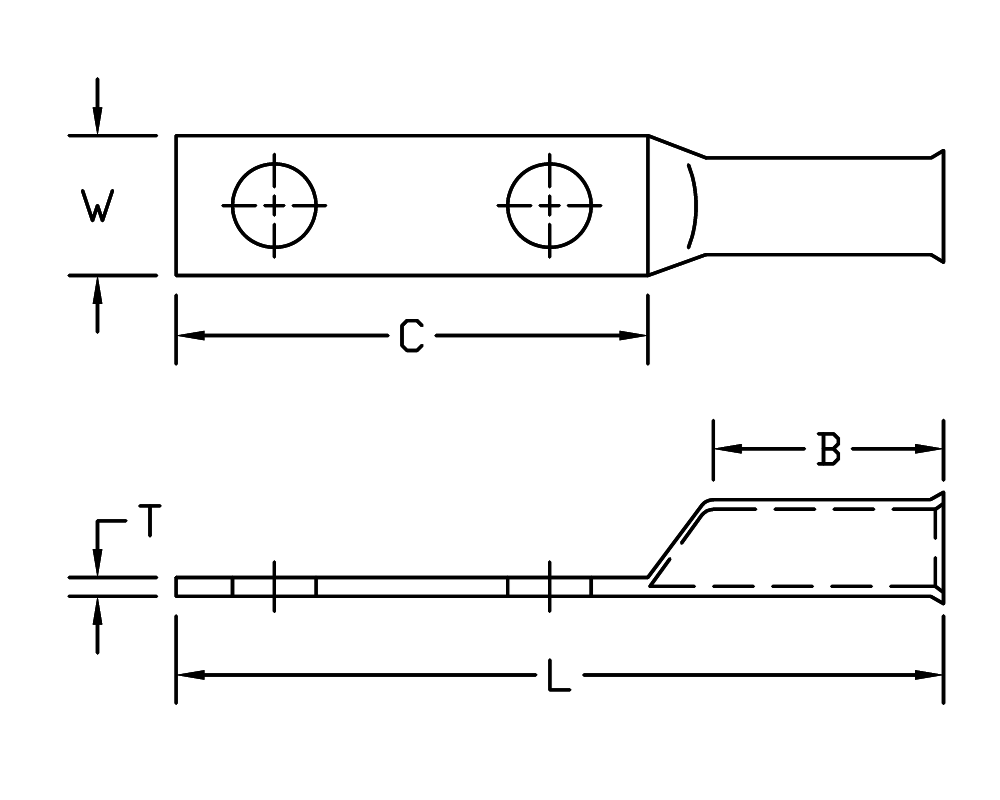

Part Drawing :-:
Download PDF Spec Sheet
