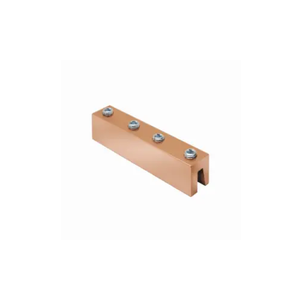

Copper Compression Groundlink Connectors Burndy YGIBW344622N
Description :
• GROUNDLINK™ Connector for Structural Steel Angled (Type YGIBS) or Parallel Beam (Type YGIBW); Accommodates: #2 AWG - 500 kcmil, I-Beam Flange Thickness: .400" - .462".
Specifications :
| Connector Type | Tap |
| I Beam Style | Wide Flange Beam (Flange Parallel) |
| Material | Copper |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | HYGROUND, GROUNDLINK |
| Trade Name | GROUNDLINK™ |
| Type | Taps |
| UPC | 781810039397 |
| Dimension - B Length fraction | 6 in |
| Dimension - B Length inch | 6.00 in |
| Dimension - I Beam Thickness inch | 0.400" - 0.462" |
| Dimension - L Length Overall mm | 152 mm |
| Dimension - Length Overall inch | 6.00 in |
| Conductor - Copper Str Size | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
| Conductor - Copper Str Size Range | 250 kcmil-500 kcmil |
| Conductor Type |
CU C Str-Size |
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) |
|
| Standards - Industry Standards Met |
|
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 1 |
