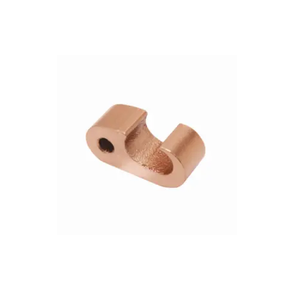

Copper Compression Ground Rod Connector Burndy YGHP29C6W6W
Description :
• Cu Compression Ground Rod Connector, #8 Sol - #6 Str, 1/2" - 5/8" Rod Dia.
• Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 1/2 - 5/8 IN, Die Index: 997 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), PAT750-18V Tool, U997P Polarized Die, (1), Rebar Size: #3 - #4, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Conductor Size (run - Range): 1/0 AWG - 250 KCMIL, Conductor Size (tap Range): 8 - 6 AWG, Shape: 6
Specifications :
| Application | For Direct Burial In Earth And Concrete |
| Connector Type | Tap |
| Die Index | 997 |
| EU RoHS Indicator | Yes |
| Material | Copper |
| Oxide Inhibitor Type | Penetrox E |
| Physical Attribute - Number of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Sub Brand | HYTAP |
| Trade Name | HYTAP™ |
| Type | Taps |
| UPC | 781810085295 |
| Dimension - B Length fraction | 3/4 in |
| Dimension - B Length inch | 0.75 in |
| Conductor - Copper Solid Tap | 8 AWG;7 AWG;6 AWG;5 AWG |
| Conductor - Copper Solid Tap Range | 8 AWG-5 AWG |
| Conductor - Copper Str Run | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Tap Range | 1/0 -250 kcmil |
| Conductor - Copper Str Tap | 8 AWG;7 AWG;6 AWG;5 AWG |
| Conductor - Copper Str Tap Range | 8 AWG-5 AWG |
| Conductor - Rebar Run | 3 ;4 |
| Conductor - Rebar Run Range | 3 -4 |
| Conductor - Rod Size | 1/2 in;5/8 in |
| Conductor - Rod Size Range | 1/2 in-5/8 in |
| Certification - CSA Approved | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) | Direct Burial |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 1 |
