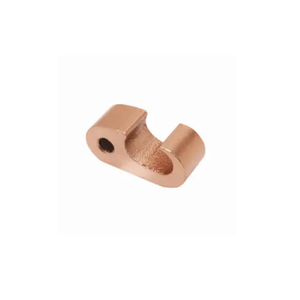

Copper Compression Ground Rod Connector Burndy YGHP29C2
Description :
• Cu Compression Ground Rod Connector, #4 Sol - #2 Str, 1/2" - 5/8" Rod Dia.
• Features: Irreversible Compression Ground Tap Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 IN, 5/8 IN, And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Conductor Size (run - Range): Cable: 1/0 AWG - 250 KCMIL, Ground Rod: 1/2 - 5/8 IN, Rebar: 3 - 4 AWG, Conductor Size (tap Range): 4 - 2 AWG, Shape: 6, Die Index: 997 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y750/Y35, Y39 Tool, U997 Die, (1), Y45 Tool, U997 Die, (1), Y46 Tool, U997 Die, (1), PAT750-18V Tool, U997P Polarized Die, (1), Rebar Size: #3 - #4, Ground Rod Size: 1/2 - 5/8 IN, Cable To Rebar: Run: #3 - #4 Rebar, Tap: 2 AWG Stranded.
Specifications :
| Application | For Direct Burial In Earth And Concrete |
| Connector Type | Tap |
| Die Index | 997 |
| EU RoHS Indicator | Yes |
| Material | Copper |
| Oxide Inhibitor Type | Penetrox E |
| Physical Attribute - Number of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Sub Brand | HYTAP |
| Trade Name | HYTAP™ |
| Type | Taps |
| UPC | 781810220924 |
| Dimension - B Length fraction | 3/4 in |
| Dimension - B Length inch | 0.75 in |
| Conductor - Copper Solid Tap | 4 AWG |
| Conductor - Copper Solid Tap Range | 4 AWG |
| Conductor - Copper Str Run | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Run Range | 1/0 -250 kcmil |
| Conductor - Copper Str Tap | 4 AWG;3 AWG;2 AWG |
| Conductor - Copper Str Tap Range | 4 AWG-2 AWG |
| Conductor - Rebar Run | 3 ;4 |
| Conductor - Rebar Run Range | 3 -4 |
| Conductor - Rod Run | 1/2 in;5/8 in |
| Conductor - Rod Run Range | 1/2 in;5/8 in |
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) | Direct Burial |
| Standards - Industry Standards Met |
|
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 1 |
