Product Information

Specification

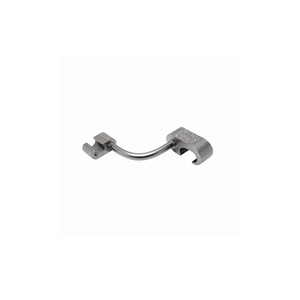

Copper Compression Cross Grid Connectors Burndy YGLR29C58TN

Description :

• Tin plated Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str.) to 250 kcmil, 5/8" Ground Rod or #5-#6 Rebar.

    Specifications :

    Connector Type Tap
    Die Index 997
    Die Index - Element B 1011
     Material Copper
    Physical Attribute - Number of Crimps Required 1
    Plated Y
    Plating Type Tin - Electro Plated
    Trade Name GRIDLOK™
    Type Taps
    UPC 781810042878
    Dimension - B Length fraction 22/25 in
    Dimension - B Length inch 0.88 in
    Dimension - Ground Rod Size 5/8
    Dimension - Height fraction 2-7/50 in
    Dimension - Height inch 2.14 in
    Dimension - L Length Overall mm 22 mm
    Dimension - Length Overall inch 0.88 in
    Conductor - Copper Str Size A 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
    Conductor - Copper Str Size A Range 2 AWG-250 kcmil
    Conductor - Rebar Tap 5;6
    Conductor - Rod Size B 5/8 in
    Conductor - Rod Size B Range 5/8 in
    Conductor Type
    • CU C Str-Size
    • Rod-Size
    • CU Weld C Str-Size
    Certification - CSA Approved Yes
    Certification - ETL No
    Certification - UL Listed Direct Burial Yes
    Certification - UL Recognized No
    Certification - cULus No
    Industry Standard(s) Direct Burial
    Standards - Industry Standards Met UL467;IEEE 837
    Standards - RoHS Compliance Status CM
    UL Listed Yes
    Minimum Pack Quantity 1
