Product Information

Specification

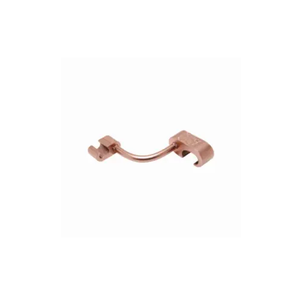

Copper Compression Cross Grid Connectors Burndy YGL34C2

Description :

• HYGRID™ Cross Connector, #6 solid through 500 kcmil, 2.50 in L, 2.09 in W.
• Features: An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Rebar Size: #5 - #6, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, PU998 Die, (1), PAT750-18V Tool, PU998 Die, (1), Y45 Tool, S998 Or PU998 Die, (1), Y46 Tool, P998 Or PU998 Die, (1), Element B: Y750/Y35/Y39 Tool, U-0 Die, (1), PAT750-18V Tool, U-0 Die, (1), Y45 Tool, U-0 Die, (1), Y46 Tool, U-0 Die, (1), Ground Rod Size: 5/8 - 3/4 IN, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Die Index: 998 Element A, O Element B, Conductor Size (tap Range): 6 - 2 AWG

    Specifications :

    Application For Direct Burial In Earth And Concrete
    Connector Type Tap
    Die Index 998
    EU RoHS Indicator Yes
     Material Copper
    Oxide Inhibitor Type Penetrox E
    Plated N
    Plating Type Unplated
    Prefilled Oxide Inhibitor Y
    Sub Brand HYGRID
    Trade Name HYGRID™
    Type Taps
    UPC 781810220030
    Dimension - B Length fraction 3/4 in
    Dimension - B Length inch 0.75 in
    Dimension - D inch 0.31 in
    Dimension - L Length Overall mm 64 mm
    Dimension - Length Overall inch 2.50 in
    Dimension - Pad Width inch 2.09 in
    Conductor - Copper Solid Size B 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
    Conductor - Copper Solid Size B Range 6 AWG-2 AWG
    Conductor - Copper Str Size A 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
    Conductor - Copper Str Size A Range 250 kcmil-500 kcmil
    Conductor - Copper Str Size B 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
    Conductor - Copper Str Size B Range 6 AWG-2 AWG
    Conductor - Rebar Size A 5; 6
    Conductor - Rebar Size A Range 5-6
    Conductor - Rod Size A 5/8 in;3/4 in
    Conductor - Rod Size A Range 5/8 in-3/4 in
    Conductor Type
    • CU C Solid-Size A
    • CU C Str-Size A
    • Rod-Size A
    • Rebar-Size A
    • CU C Solid-Size B
    • CU C Str-Size B
    Certification - CSA Approved Yes
    Certification - ETL No
    Certification - UL Listed Direct Burial Yes
    Certification - UL Recognized No
    Certification - cULus No
    Industry Standard(s)
    • UL467
    • IEEE 837
    • IEEE 837 2014 Qualified
    Standards - Industry Standards Met UL467;IEEE 837
    Standards - RoHS Compliance Status CM
    UL Listed Yes
    Minimum Pack Quantity 1
